ERM8-010-05.0-L-DV-TR

Name: Samtec ERM8-010-05.0-L-DV-TR
Brand: Samtec
SKU: 200-ERM801005.0LDVTR
Price: 3.52 EUR
Availability: InStock

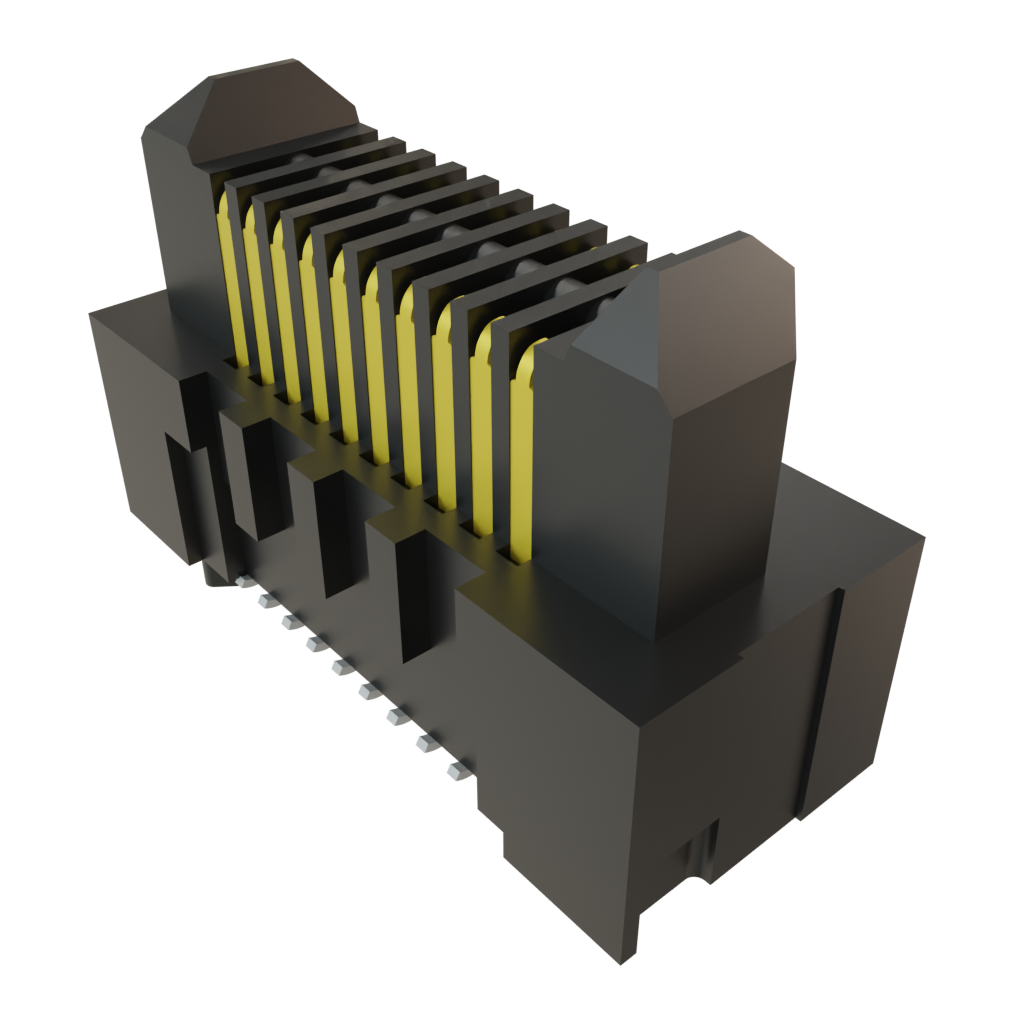

Resimler sadece referans içindir
Ürün Teknik Özelliklerine Bakın

Mouser Numarası:

200-ERM801005.0LDVTR

Ürt. Numarası:

ERM8-010-05.0-L-DV-TR

Ürt.:

Samtec

Açıklama:

Karttan Karta ve Ara Kat Konnektörleri 0.80 mm Edge Rate Rugged High Speed Terminal

Veri Sayfası:

ERM8-010-05.0-L-DV-TR Veri Sayfası (PDF)

ECAD Modeli:

Bu dosyayı ECAD Aracınız için dönüştürmek için ücretsiz Library Loader dosyasını indirin. ECAD Model hakkında daha fazla bilgi edinin.

Daha Fazla Bilgi

Samtec ERM8-010-05.0-L-DV-TR hakkında daha fazla bilgi edinin

Stokta Var: 479

Stok:: 479 Hemen Gönderilebilir

Beklenmeyen bir hata oluştu. Lütfen daha sonra tekrar deneyin.
Fabrika Teslim Süresi:: 3 Hafta Gösterilenden daha büyük miktarlar için fabrikada tahmini üretim süresi.

Miktar Girin:

Minimum: 1 Çoklu: 1

Birim Fiyat:

-,-- €

Toplam Fiyat:

-,-- €

Tahmini Gümrük Vergisi:

Fiyatlandırma (EUR)

Miktar	Birim Fiyat	Toplam Fiyat
	3,52 €	3,52 €
	3,11 €	77,75 €
	2,89 €	144,50 €
	2,79 €	279,00 €
Tam Makara (325'in katları olarak sipariş verin)
	2,79 €	906,75 €
	2,73 €	2.661,75 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Ürün Niteliği	Öznitelik Değeri	Özellik Seçin
Üretici Firma:	Samtec
Ürün Kategorisi:	Karttan Karta ve Ara Kat Konnektörleri
RoHS:
Ürün:	Headers
Pozisyon Sayısı:	20 Position
Saha:	0.8 mm (0.031 in)
Satır Sayısı:	2 Row
Sonlandırma Stili:	Solder
Montaj Açısı:	Vertical
Yığın Yüksekliği:	10 mm, 12 mm, 14 mm
Maksimum Veri Hızı:	56 Gbps
Minimum Çalışma Sıcaklığı:	- 55 C
Maksimum Çalışma Sıcaklığı:	+ 125 C
Kontak Kaplama:	Gold
Kontak Malzemesi:	Phosphor Bronze
Muhafaza Materyalleri:	Liquid Crystal Polymer (LCP)
Seri:	ERM8
Paketleme:	Reel
Paketleme:	Cut Tape
Marka:	Samtec
Yanıcılık Derecesi:	UL 94 V-0
Montaj Stili:	SMD/SMT
Ürün Tipi:	Board to Board & Mezzanine Connectors
Fabrika Paket Miktarı:	325
Alt kategori::	Board to Board & Mezzanine Connectors
Ticari Unvan:	Edge Rate

Bulunan ürünler:

Benzer ürünleri göstermek için en az bir onay kutusu seçin

Bu kategorideki benzer ürünleri göstermek için yukarıda en az bir onay kutusu seçin.

Seçilen özellikler: 0

Belgeyi Filtrele:

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

High-Speed Cable Assemblies

Samtec High-Speed Cable Assemblies include AcceleRate® slim body, ERCD 0.80mm Edge Rate®, HLCD high-speed hermaphroditic, HQCD 0.50mm Q Strip®, and SEAC SEARAY™ series. The AcceleRate cable assembly consists of the ARC6 slim cable body that mates together with the ARF6 series for a secure connection. The ERCD 0.80mm Edge Rate assemblies use Samtec's Eye Speed cable to provide a 14Gbps performance and feature a double-row system to 120 pins and a standard metal latching system. Eye Speed cable technology offers excellent signal integrity performance with an individual copper serve or braid shielding, 26AWG to 38AWG coax and twinax construction, and 20Ω, 50Ω, 85Ω, and 100Ω ratings.

Edge Rate® High-Speed Rugged High-Cycle Connectors

Samtec Edge Rate® High-speed Rugged High-Cycle Connectors are optimized for signal integrity performance. These connectors feature a smooth milled contact surface for mating instead of stamped contact that mates on a cut edge. This mating surface reduces the wear tracks on the contact and increases the durability and cycle life of the contact system. Samtec Edge Rate High-speed Rugged High-Cycle Connectors offer low insertion and withdrawal forces and allow the connectors to be zippered when unmating.

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).

ERM8 & ERF8 Edge Rate® Rugged High-Speed Strips

Samtec ERM8 and ERF8 Edge Rate® Rugged High-Speed Strips are 0.8mm pitch terminal and socket strips optimized for signal integrity performance. These strips feature a smooth broad milled contact surface for increased wear life. The ERM8 and ERF8 strips offer up to 200 positions with a stack height from 7mm to 16mm. These connectors are available in edge-mount and right-angle versions. The ERM8 rugged high-speed headers feature a hot-swap option and are designed for rugged micro-pitch applications. Samtec ERF8 rugged high-speed sockets improve "zippered" unmating with robust Edge Rate contacts. The ERM8 and ERF8 strips offer high-speed channel performance of up to 56Gbps.

Rugged SI System Connectors for Embedded Vision

Samtec Rugged SI System Connectors for Embedded Vision are available in a variety of pitches, including 0.5mm, 0.635mm, and 0.8mm. The number of positions ranges from 10 to 200, while the mounting angles include straight, right, and vertical. Samtec Rugged SI System Connectors for Embedded Vision offer stack heights as low as 5mm. The product portfolio features headers, sockets, hermaphroditic connectors, receptacles, and connectors. Termination styles include solder and solder pin.

Rugged SI System Connectors for Automation

Samtec Rugged SI System Connectors for Automation are available in a range of stack heights, termination styles, and the number of rows. The mounting angles include right, straight, and vertical. The number of positions ranges from 10 to 200. Samtec Rugged SI System Connectors for Automation come in a variety of pitches, including 0.5mm, 0.635mm, and 0.8mm. The product portfolio includes connectors, headers, receptacles, sockets, and hermaphroditic connectors.
