QTH-030-01-F-D-A-RT1

Name: Samtec QTH-030-01-F-D-A-RT1
Brand: Samtec
SKU: 200-QTH03001FDART1
Price: 9.81 EUR
Availability: OutOfStock

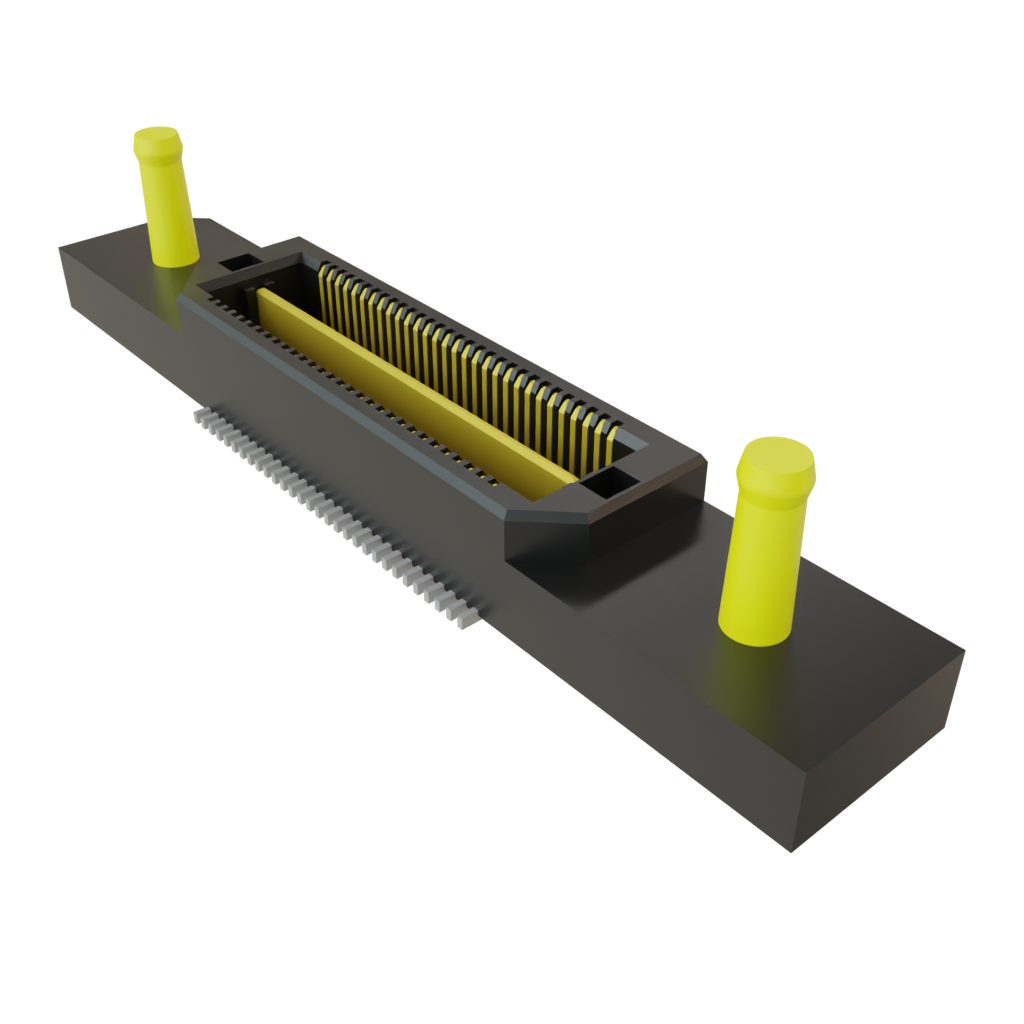

Resimler sadece referans içindir
Ürün Teknik Özelliklerine Bakın

Mouser Numarası:

200-QTH03001FDART1

Ürt. Numarası:

QTH-030-01-F-D-A-RT1

Ürt.:

Samtec

Açıklama:

Karttan Karta ve Ara Kat Konnektörleri 0.50 mm Q Strip High-Speed Ground Plane Terminal Strip

Veri Sayfası:

QTH-030-01-F-D-A-RT1 Veri Sayfası (PDF)

ECAD Modeli:

Bu dosyayı ECAD Aracınız için dönüştürmek için ücretsiz Library Loader dosyasını indirin. ECAD Model hakkında daha fazla bilgi edinin.

Daha Fazla Bilgi

Samtec QTH-030-01-F-D-A-RT1 hakkında daha fazla bilgi edinin

Stok Durumu

Stok:: 0

Bu ürünü hâlâ tekrar siparişle satın alabilirsiniz.

Beklenmeyen bir hata oluştu. Lütfen daha sonra tekrar deneyin.
Siparişte:: 15

Beklenen 9.03.2026
Fabrika Teslim Süresi:: 2

Hafta Gösterilenden daha büyük miktarlar için fabrikada tahmini üretim süresi.

Miktar Girin:

Minimum: 1 Çoklu: 1

Birim Fiyat:

-,-- €

Toplam Fiyat:

-,-- €

Tahmini Gümrük Vergisi:

Fiyatlandırma (EUR)

Miktar	Birim Fiyat	Toplam Fiyat
	9,81 €	9,81 €
	9,53 €	95,30 €
	9,28 €	232,00 €
	8,83 €	441,50 €
	8,03 €	803,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Ürün Niteliği	Öznitelik Değeri	Özellik Seçin
Üretici Firma:	Samtec
Ürün Kategorisi:	Karttan Karta ve Ara Kat Konnektörleri
Ürün:	Headers
Pozisyon Sayısı:	60 Position
Saha:	0.5 mm (0.02 in)
Satır Sayısı:	2 Row
Sonlandırma Stili:	Solder
Montaj Açısı:	Straight
Yığın Yüksekliği:	5 mm
Akım Oranı:	2 A
Voltaj Derecesi:	175 VAC
Minimum Çalışma Sıcaklığı:	- 55 C
Maksimum Çalışma Sıcaklığı:	+ 125 C
Kontak Kaplama:	Gold
Kontak Malzemesi:	Phosphor Bronze
Muhafaza Materyalleri:	Liquid Crystal Polymer (LCP)
Seri:	QTH
Paketleme:	Tray
Uygulama:	Power, Signal
Marka:	Samtec
Yanıcılık Derecesi:	UL 94 V-0
Montaj Stili:	Mounting Peg
Ürün Tipi:	Board to Board & Mezzanine Connectors
Fabrika Paket Miktarı:	65
Alt kategori::	Board to Board & Mezzanine Connectors
Ticari Unvan:	Q Strip

Bulunan ürünler:

Benzer ürünleri göstermek için en az bir onay kutusu seçin

Bu kategorideki benzer ürünleri göstermek için yukarıda en az bir onay kutusu seçin.

Seçilen özellikler: 0

Belgeyi Filtrele:

Specification Sheets

Technical Resources

CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Q Strip™ High-Speed Mezzanine Connectors

Samtec Q Strip™ High-Speed Mezzanine Connectors are designed for high-speed board-to-board applications where signal integrity is essential. Q Strip connectors have surface-mount signal contacts and a surface-mount ground plane between the two rows of signals for improved electrical performance. Mated sets of Samtec Q Strip connectors are available in 8 different stack heights from 5mm (.197") to 30mm (1.180"). Options include guideposts for blind mate scenarios and alignment pins and locking clips for proper connector placement before reflow.

5G Solutions

Samtec 5G Solutions support the ultra-high frequencies and high data rates that emerging 5G technologies demand. As this 5G network quickly gains momentum, new systems, devices, and equipment are needed for technologies such as mmWave, Massive MIMO, beamforming, and full-duplex (FDX). Samtec 5G Solutions feature high-performance products for four applications: Test and Development Systems, Remote Radio and Active Antennas, Network Equipment, and Automotive and Transportation.

High-Speed Cable Assemblies

Samtec High-Speed Cable Assemblies include AcceleRate® slim body, ERCD 0.80mm Edge Rate®, HLCD high-speed hermaphroditic, HQCD 0.50mm Q Strip®, and SEAC SEARAY™ series. The AcceleRate cable assembly consists of the ARC6 slim cable body that mates together with the ARF6 series for a secure connection. The ERCD 0.80mm Edge Rate assemblies use Samtec's Eye Speed cable to provide a 14Gbps performance and feature a double-row system to 120 pins and a standard metal latching system. Eye Speed cable technology offers excellent signal integrity performance with an individual copper serve or braid shielding, 26AWG to 38AWG coax and twinax construction, and 20Ω, 50Ω, 85Ω, and 100Ω ratings.

Q Strip® QTH High-Speed Ground Plane Strips

Samtec QTH High-Speed Ground Plane Terminal Strips offer a 175V_AC rating and 60 pins per bank with a 2A rating per pin. Phosphor bronze constructs the terminal, and the insulator material features a liquid crystal polymer construction. QTH terminal strips are compatible with UMPT/UMPS for flexible two-piece power and signal solutions. Samtec QTH High-Speed Ground Plane Terminal Strips have a 100 max. cycle rating and a -55°C to +125°C operating temperature range.
