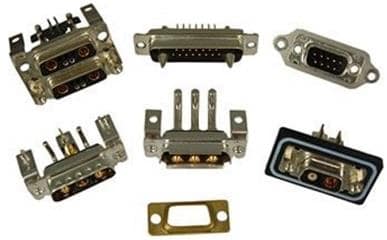

Amphenol Commercial TW Hybrid D-Sub Connectors

Amphenol Commercial TW Hybrid D-Sub Connectors come in various contact arrangements such as signal, power, shielded, high voltage, and fiber optics. These connectors feature mating interfaces according to MIL C24308, less than 5mΩ contact resistance, and endure temperatures up to 260°C. The TW Hybrid D-Sub connectors are supplied with screw-machined contacts fixed in the insulators. These connectors are suitable for use in commercial, medical, industrial, telecom, and any applications requiring optimization of space.

Features

  • Standard D shape connectors
  • Mating interface according to MIL C24308
  • Current rating of 7.5A for signal and maximum 40A for power
  • Endures temperatures up to 260°C
  • Contact resistance less than 5mΩ
  • Up to 18 configurations of signal, power, and coax contacts
  • Machined signal contacts are fixed in the insulator
  • Metal shells for EMI
  • Grounding dimples for plug
  • UL #232356 Certified
  • Inserts are made of flame-retardant thermoplastic
  • Hybrids are available in signal/power/coaxial
  • Variants with a comprehensive range of terminations
  • Both socket and plug are available for each termination variant
  • Ensures proper mating orientation
  • Suitable for applications requiring high reliability
  • Suitable for high-end applications
  • Meets industry standards
  • Supports various customer needs

Applications

  • Commercial
  • Medical
  • Industrial
  • Telecom
  • Applications requiring optimization of space

Overview

Amphenol Commercial TW Hybrid D-Sub Connectors

Housing Arrangement

Chart - Amphenol Commercial TW Hybrid D-Sub Connectors
View Results ( 579 ) Page
Parça Numarası Veri Sayfası Açıklama Kontak Cinsiyeti Kontak Malzemesi Kontak Kaplama
L17DM537425001 L17DM537425001 Veri Sayfası D-Sub Kontakları Inner SolderCup Ferrule ST Socket Socket (Female) Phosphor Bronze Gold
L177HRD78S L177HRD78S Veri Sayfası D-Sub Yüksek Yoğunluklu Konnektörler 78P Sz D Recpt Hsng Skt Tinned Shell
L177RRDG50S L177RRDG50S Veri Sayfası D-Sub Standart Konnektörler 50P Sz D Recpt Hsng Rear Insert M3 Socket (Female) Gold
L177HDE15SD1CH4R L177HDE15SD1CH4R Veri Sayfası D-Sub Yüksek Yoğunluklu Konnektörler 15P Sz E Hi Density Skt Rear Insert 4-40
L177HDE15S L177HDE15S Veri Sayfası D-Sub Yüksek Yoğunluklu Konnektörler 15P Sz E Hi Density Socket
L177HREH15S L177HREH15S Veri Sayfası D-Sub Yüksek Yoğunluklu Konnektörler 15P Sz E Recpt Hsng Rear Insert 4-40
L17DM53745201 L17DM53745201 Veri Sayfası D-Sub Kontakları 30-40A Crimp Straight Pin Hybrid Pin (Male) Brass Gold
L177SDA15SVFM L177SDA15SVFM Veri Sayfası D-Sub Standart Konnektörler D-SUB Socket (Female) Brass Gold
L177HRCG62S L177HRCG62S Veri Sayfası D-Sub Yüksek Yoğunluklu Konnektörler 62P Sz C Recpt Hsng Rear Insert M3
L177HRA26SVFM L177HRA26SVFM Veri Sayfası D-Sub Yüksek Yoğunluklu Konnektörler 26P Sz A Recpt Hsng M3 Front Screwlock
