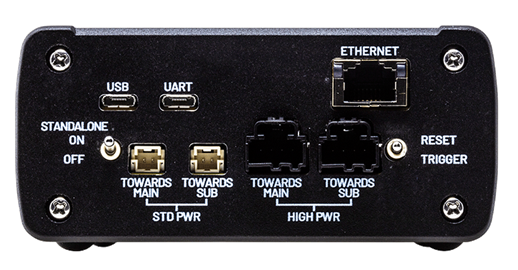

Analog Devices Inc. A2B Bus Analyzer
Analog Devices Inc. A2B Bus Analyzer is a robust development tool supporting the design and debug of AD242x/3x based A2B networks. It can be configured to act as an active bus emulation tool and/or as a passive bus monitor.
main components
- Hardware unit
- A2B Main/Sub node emulation
- Passive bus traffic monitor
- Variety of audio input/output interfaces
- High-speed USB interface for audio and control communication
- GUI application
- Intuitive GUI for device configuration and control
- Capture/playback of Real-time audio streams and bus traffic on PC
- Inject test tones/streams from PC onto the bus for debugging
- A2B Network/node management and diagnostics
- Audio streaming over USB using ASIO/ALSA/CoreAudio
- Support for Windows, Linux, MacOS
- SDK
- Software Development Kit (SDK) to create custom applications
Features
- Hardware unit
- A2B Main/Sub node emulation
- Passive bus traffic monitor
- Variety of audio input/output interfaces
- High-speed USB Interface for audio and control communication
- GUI application
- Intuitive GUI for device configuration and control
- Capture/playback of Real-time audio streams and bus traffic on PC
- Inject test tones/streams from PC onto the bus for debugging
- A2B Network/node management and diagnostics
- Audio streaming over USB using ASIO/ALSA/CoreAudio
- Support for Windows, Linux, MacOS
- SDK
- Software Development Kit (SDK) to create custom applications
Applications
- Engineering – design, and development
- Test and validation
- Pre-production testing
- In-vehicle testing/debug
Kit Contents
- A2B Bus Analyzer HW Unit
- USB-A to Micro-B cable
- 12V power supply adapter
- A2B Cable with HDAC to Duraclik connectors
- A2B Cable with HDAC to HDAC connectors (2)
- A2B Cable with Duraclik connectors (2)
- A2B Analyzer Application download instructions
Related Products
Analog Devices Inc. AD242x Automotive Audio Bus A2B® Transceivers
A2B delivers control, power, and digital audio over a single unshielded twisted pair of cables.
