Analog Devices Inc. EVAL-ADAQ8092-FMCZ Evaluation Board
Analog Devices Inc. EVAL-ADAQ8092-FMCZ Evaluation Board is ideal for getting started on development with the ADAQ8092. The ADAQ8092 is a 14-bit, 105MSPS, high-speed dual-channel data acquisition µModule solution. The device utilizes the System-in-Package (SiP) that integrates three common signal processing and conditioning blocks.
The ADI EVAL-ADAQ8092-FMCZ Evaluation Board does not require an external power supply and needs a very small jitter in the clock source. The DC1075B is recommended to improve the clock signal source.
Features
- Dual-channel simultaneously sampling ADC
- Integrated differential amplifier/ADC driver
- Single-ended to differential input configuration circuitry
- LVDS output capability
- Serial SPI port for configuration
- On-board power solution
- FMC-LPC system board connector
Applications
- Communications
- Cellular base stations
Required Equipment
- PC with Windows 7 or Windows 10 operating system
- EVAL-ADAQ8092-FMCZ
- Digilent ZedBoard with 12V wall adapter power supply
- Power supply
- Rohde & Schwarz SMA100A (clock source) - suggested
- Male-male SMA adapter
- SD card
- Keysight 336xx series (signal generator) - suggested
- DC1075B Clock Divider - suggested
- SMA cables
- Attenuator
- TTE bandpass filter, centered on test signal frequency - suggested
Kit Contents
- EVAL-ADAQ8092-FMCZ evaluation board
- Micro-SD memory card (with adapter) containing system board boot software and Linux OS

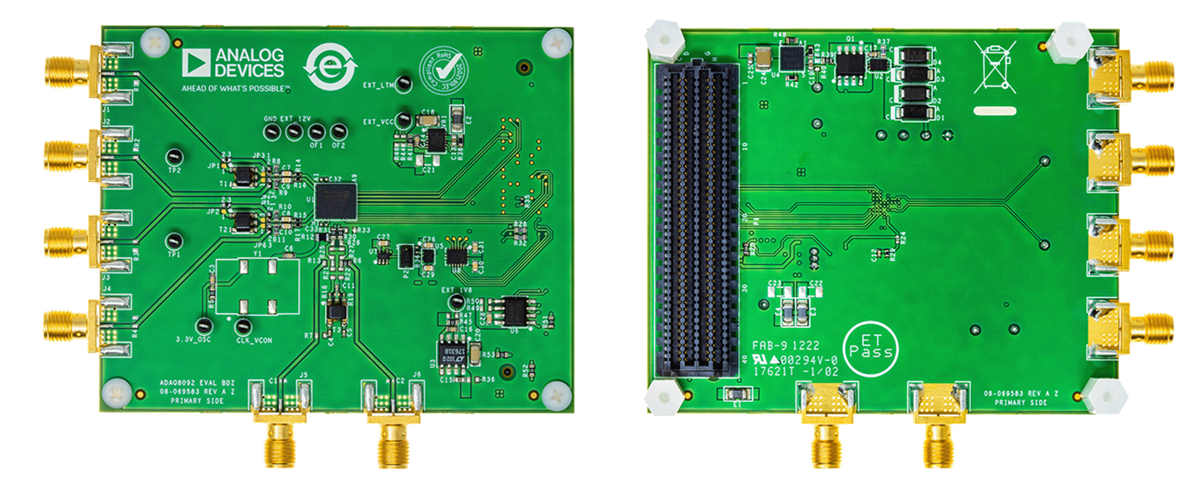

PCB Layout
Additional Resources
Related Products
Analog Devices Inc. ADAQ8092 14-Bit 105 MSPS μModule®
High-speed dual-channel data acquisition (DAQ) solution.
