Analog Devices Inc. HMC451 GaAs pHEMT MMIC Amplifiers

Analog Devices HMC451 GaAs pHEMT MMIC Amplifiers are compact, medium power amplifiers offered in RoHS-compliant bare die, SMT-16, and QFN-16 packages. Operating between 5GHz and 20GHz, the HMC451 amplifiers provide up to 22dB of gain, up to +22dBm of saturated power, and up to 24% PAE from a single +5.0V supply. Consistent gain and output power across the operating band make it possible to use a common driver/LO amplifier approach in multiple radio bands. This 50Ω matched amplifier does not require any external components, and the RF I/O’s are DC blocked, making it an ideal linear gain block or LO driver for HMC SMT mixers.

The compact size of the Bare Die HMC451 makes it ideal for integration into Multi-Chip-Modules (MCMs). The HMC451LC3 QFN-16 and  HMC451LP3 SMT-16 packages allow for the use of automated surface-mount pick-and-place manufacturing techniques.

Features

  • Gain
    • HMC451: 22dB
    • HMC451LC3: 19db
    • HMC451LP3: 18dB
  • Saturated Power
    • HMC451: +22 dBm @ 24% PAE
    • HMC451LC3: +21 dBm @ 21% PAE
    • HMC451LP3: +21 dBm @ 18% PAE
  • Output IP3
    • HMC451: +30dBm
    • HMC451LC3: +30dBm
    • HMC451LP3: +28dBm
  • Single Supply
    • HMC451: +5V @ 127mA
    • HMC451LC3: +5V @ 114mA
    • HMC451LP3: +5V @ 120mA
  • Package Options
    • HMC451: Bare Die
    • HMC451LC3: SMT-16
    • HMC451LP3: QFN-16
  • Package Dimensions
    • HMC451: 1.27mm x 1.27mm
    • HMC451LC3: 3mm x 3mm
    • HMC451LP3: 3mm x 3mm

Applications

  • Point-to-Point radio
  • Microwave radio and VSAT
  • Military and rpace
  • Test equipment and sensors
  • Fiber optics
  • LO Driver for HMC mixers

Datasheets

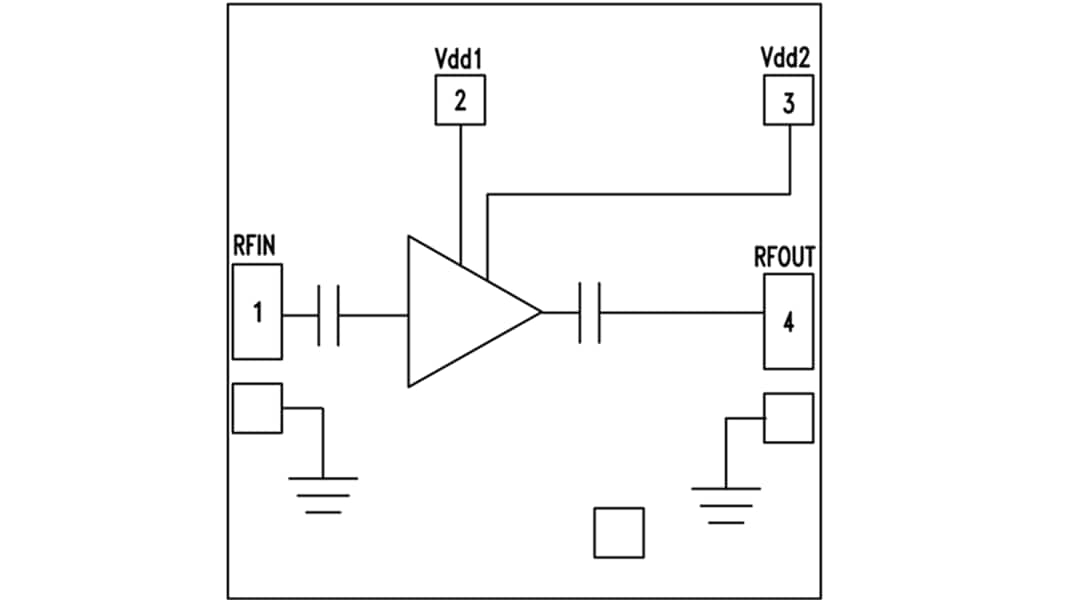

HMC451 Functional Diagram

Block Diagram - Analog Devices Inc. HMC451 GaAs pHEMT MMIC Amplifiers

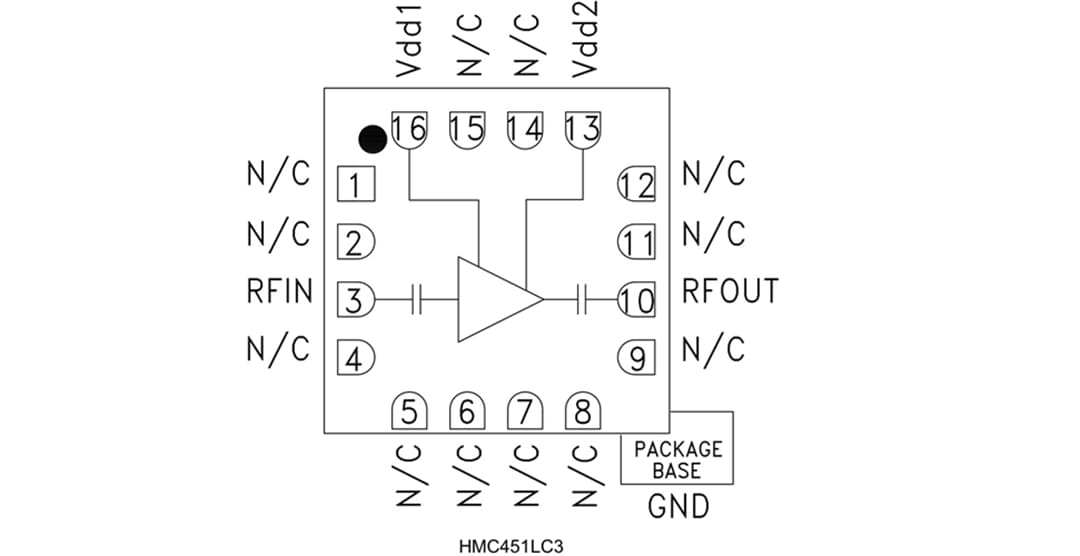

HMC451LC3 Functional Diagram

Block Diagram - Analog Devices Inc. HMC451 GaAs pHEMT MMIC Amplifiers

HMC451LP3 Functional Diagram

Block Diagram - Analog Devices Inc. HMC451 GaAs pHEMT MMIC Amplifiers
View Results ( 8 ) Page
Parça Numarası Veri Sayfası Açıklama Kazanç
HMC451LC3 HMC451LC3 Veri Sayfası RF Amplifikatörleri Medium pow amp SMT, 5 - 20 GHz 19 dB
HMC451LP3 HMC451LP3 Veri Sayfası RF Amplifikatörleri GaAs pHemt MMIC Med PA, 5 - 20 GHz 18 dB
HMC451LC3TR HMC451LC3TR Veri Sayfası RF Amplifikatörleri Medium pow amp SMT, 5 - 20 GHz 19 dB
HMC451LC3TR-R5 HMC451LC3TR-R5 Veri Sayfası RF Amplifikatörleri Medium pow amp SMT, 5 - 20 GHz
HMC451LP3E HMC451LP3E Veri Sayfası RF Amplifikatörleri GaAs PHEMT MMIC Med PA, 5 - 18 GHz 18 dB
HMC451LP3ETR HMC451LP3ETR Veri Sayfası RF Amplifikatörleri GaAs PHEMT MMIC Med PA, 5 - 18 GHz 18 dB
HMC451-SX HMC451-SX Veri Sayfası RF Amplifikatörleri 5-20 GHz pHEMT Driver amp 22 dB
HMC451LP3TR HMC451LP3TR Veri Sayfası RF Amplifikatörleri GaAs pHemt MMIC Med PA, 5 - 20 GHz
