Apacer Technology Inc. SV170-CFast 2.0 Flash Memory Cards

Apacer Technology Inc. SV170-CFast 2.0 Flash Memory Cards are an improvement of the conventional CFast form factor delivering various technological advantages. These memory cards utilize 3D NAND for a higher capacity, up to 480GB, providing more power efficiency than 2D NAND. These memory cards deliver data transfer rates up to 560MB/s in sequential access and 79000IOPS in 4KB random access. The SV170-CFast 2.0 memory cards feature a supply voltage of 3.3V and operate within a wide temperature range of -40°C to 85°C. These flash drives appear in 42.80mm x 36.45mm x 3.60mm dimensions and consume 500mA power in active mode and 105mA in idle mode.

Features

  • Flash management:
    • Low-Density Parity-Check (LDPC) code
    • Global wear leveling
    • Flash bad-block management
    • Flash translation layer - page mapping
    • Power failure management
    • S.M.A.R.T.
    • Device sleep
    • ATA secure erase
    • TRIM
    • Hyper cache technology
    • Over-provisioning
    • DataRAID™
    • SMART Read Refresh™
  • Reliability:
    • Thermal sensor
    • End-to-End data protection
  • >3,000,000 hours MTBF
  • RoHS compliant
  • Available in 30GB, 60GB, 120GB, 240GB, and 480GB capacities
  • Performance:
    • 600MB/sec burst read/write
    • Up to 560MB/sec sequential read
    • Up to 495MB/sec sequential write
    • Up to 79,000IOPS random read (4K)
    • Up to 84,000IOPS random write (4K)
  • 7 + 17 pins female connector
  • Form factor:
    • CFast
    • 9.33g±5% net weight
    • 42.80mm x 36.45mm x 3.60mm dimensions
  • Compliance with SATA interface:
    • Serial ATA Revision 3.2
    • SATA 6GB/s
    • ATA-8 command set
    • Backward compatible with SATA 1.5GB/s/3GB/s


Specifications

  • Temperature range:
    • Operating:
      • 0°C to 70°C standard
      • -40°C to 85°C wide
    • -40°C to 100°C storage
  • 3D TLC (BiCS3) NAND flash type
  • Power consumption:
    • 3.3V supply voltage
    • 500mA in active mode
    • 105mA in idle mode

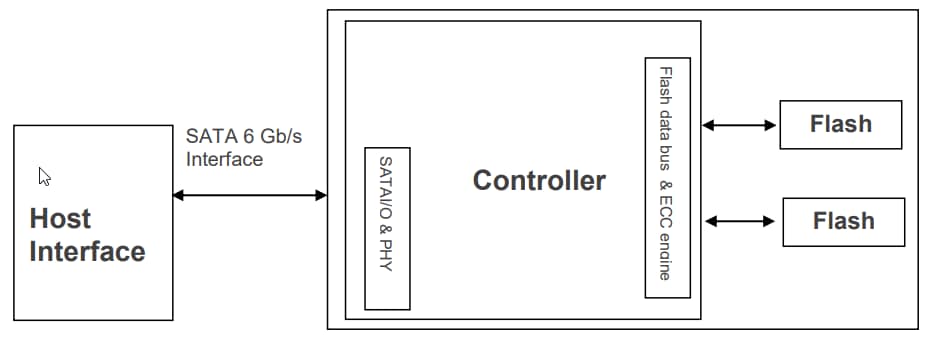

Functional Block Diagram

Block Diagram - Apacer Technology Inc. SV170-CFast 2.0 Flash Memory Cards

Dimensions

Mechanical Drawing - Apacer Technology Inc. SV170-CFast 2.0 Flash Memory Cards
View Results ( 7 ) Page
Parça Numarası Bellek Boyutu Sürekli Yazma Sürekli Okuma Minimum Çalışma Sıcaklığı Maksimum Çalışma Sıcaklığı Aktif Mod Akımı
AA2.175FGA.00111 30 GB 130 MB/s 295 MB/s 0 C + 70 C 500 mA
AA2.175GGA.00111 60 GB 255 MB/s 550 MB/s 0 C + 70 C 500 mA
AA2.175GHA.00111 60 GB 255 MB/s 550 MB/s 0 C + 70 C 500 mA
AA2.175HHA.00111 120 GB 450 MB/s 560 MB/s - 40 C + 85 C 500 mA
AA2.175JHA.00111 240 GB 490 MB/s 560 MB/s - 40 C + 85 C 500 mA
AA2.175KGA.00111 480 GB 495 MB/s 560 MB/s 0 C + 70 C 500 mA
AA2.175KHA.00111 480 GB 495 MB/s 560 MB/s - 40 C + 85 C 500 mA
