Apacer Technology Inc. SV250-300/300B Solid State Disks (SSDs)

Apacer Technology Inc. SV250-300/300B Solid State Disks (SSDs) are designed with SATA-based connector pinouts and in SATA 6Gb/s interface. These SSDs provide complete compliance with the SATA revision 3.2 interface specifications. The SV250-300/300B SSDs utilize 3D NAND for a high capacity of up to 1920GB/960GB to deliver better power efficiency than 2D NAND. These SSDs are built with a powerful SATA controller that supports on-the-module ECC and an efficient wear-leveling scheme. The SV250-300/300B SSDs adopt the page mapping file translation layer and include implementations such as power-saving modes, hyper cache technology, over-provisioning, and TRIM. These SSDs also include Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.), DataRAID™, and DataDefender™.

The SV250-300/300B SSDs deliver performance up to 560MB/s sequential read, 470MB/s sequential write, 50,000IOPS/52,000IOPS random read (4k), and 68,000IOPS random write (4K). These SSDs operate from -40°C to 85°C temperature range and 3.3V ±5% supply voltage. The SV250-300/300B SSDs are RoHS Recast compliant.

Features

  • Flash Management:
    • Low-Density Parity-Check (LDPC) code
    • Global wear leveling
    • Flash bad-block management
    • Page mapping flash translation layer
    • Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T)
    • DataDefender™
    • Device sleep
    • ATA secure erase
    • TRIM
    • Hyper cache technology
    • Over-provisioning
    • DataRAID™
    • SMART read refresh™
  • 3D TLC (BiCS5) NAND flash type
  • Compliance with SATA revision 3.2:
    • SATA 6 Gb/s interface
    • ATA-8 command set
    • Backward compatible with SATA 1.5Gb/s and 3Gb/s
  • MTBF: >3,000,000 hours
  • Reliability:
    • Thermal sensor
    • End-to-end data protection
  • RoHS Recast compliant

Specifications

  • 0°C to 70°C standard operating temperature range
  • -40°C to 85°C wide operating temperature range
  • 55°C to 100°C storage temperature range
  • Power consumption (SV250-300B):
    • 380mA in active mode
    • 60mA in idle mode
  • Power consumption (SV250-300):
    • 390mA in active mode
    • 65mA in idle mode
  • 3.3V ±5% supply voltage

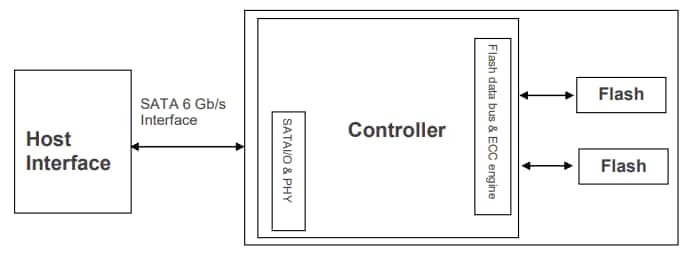

SV250-300/300B Functional Block Diagram

Block Diagram - Apacer Technology Inc. SV250-300/300B Solid State Disks (SSDs)

Datasheets

View Results ( 43 ) Page
Parça Numarası İşletim Besleme Voltajı Konnektör Tipi Sürekli Yazma Sürekli Okuma Arayüz Türü Form Faktörü Bellek Boyutu Boyutlar Yapılandırma
A82.255HGC.002EM 3.3 V 52-pin mSATA 190 MB/s 440 MB/s SATA MO-300 120 GB 29.85 mm x 26.8 mm x 3.85 mm 3D TLC
A72.255JHA.00104 3.3 V 52-pin 510 MB/s 560 MB/s SATA MO-300 240 GB 50.8 mm x 29.85 mm x 4.85 mm 3D TLC
A72.255FGA.001HA
A72.255FHA.001HA
A72.255GGA.001HA
A72.255GHA.001HA
A72.255HGA.003EM 3.3 V 52-pin mSATA 190 MB/s 440 MB/s SATA MO-300 120 GB 50.8 mm x 29.85 mm x 4.85 mm 3D TLC
A72.255HHA.002EF 3.3 V 52-pin mSATA 190 MB/s 440 MB/s SATA MO-300 120 GB 50.8 mm x 29.85 mm x 4.85 mm 3D TLC
A72.255JGA.003EM 3.3 V 52-pin mSATA 470 MB/s 560 MB/s SATA MO-300 240 GB 50.8 mm x 29.85 mm x 4.85 mm 3D TLC
A72.255JHA.003EF 3.3 V 52-pin mSATA 470 MB/s 560 MB/s SATA MO-300 240 GB 50.8 mm x 29.85 mm x 4.85 mm 3D TLC
Yayınlandı: 2023-05-26 | Güncellenmiş: 2023-06-12
