Aptiv Power Conversion Solutions
Aptiv Power Conversion Solutions offers high voltage connection systems designed specifically for the voltage and current needs up to 250A. Power conversion modules include inverters, drive motors/generators, and high current / high voltage battery outputs. Aptiv Power Conversion Solutions are ideal for power electric boxes, e-motors, and DC/DC converters.
Applications
- DC/DC converters
- Distribution units (HV PDU)
- Power electric boxes
- AC/DC inverters
- E-motors
- HV batteries

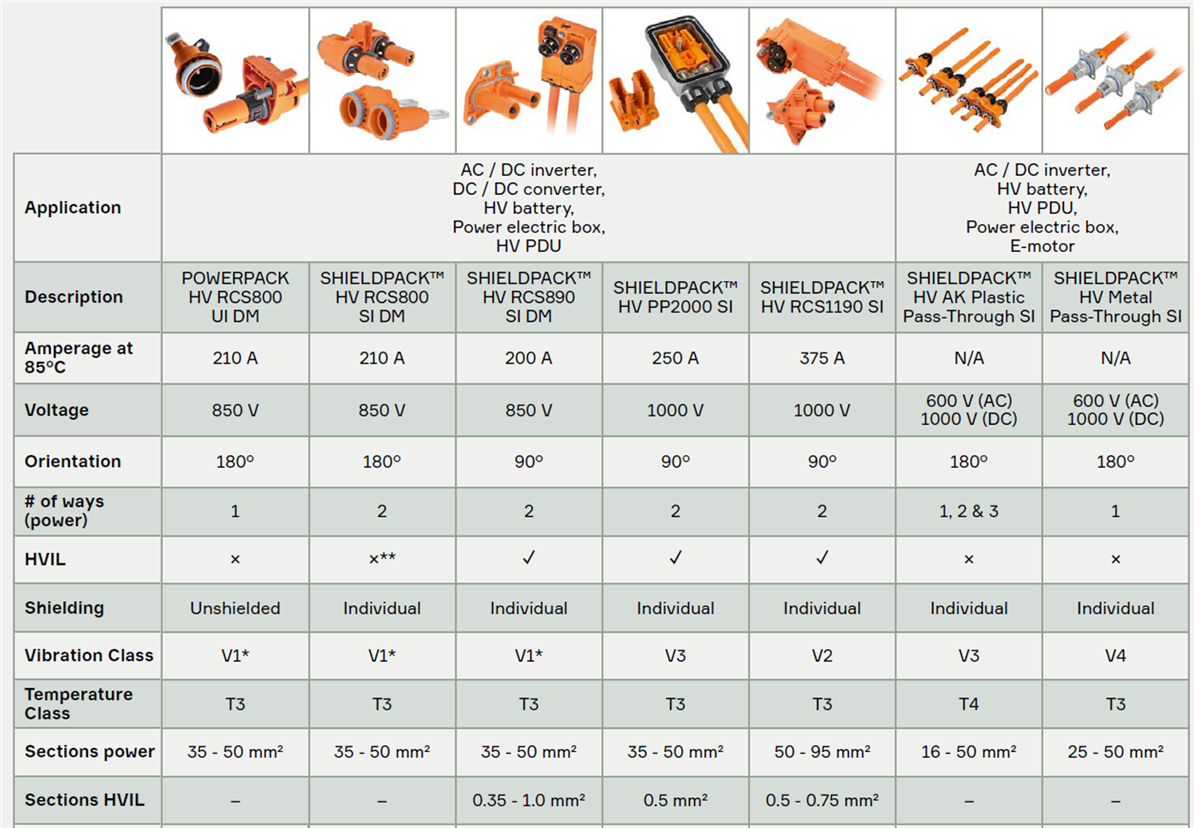

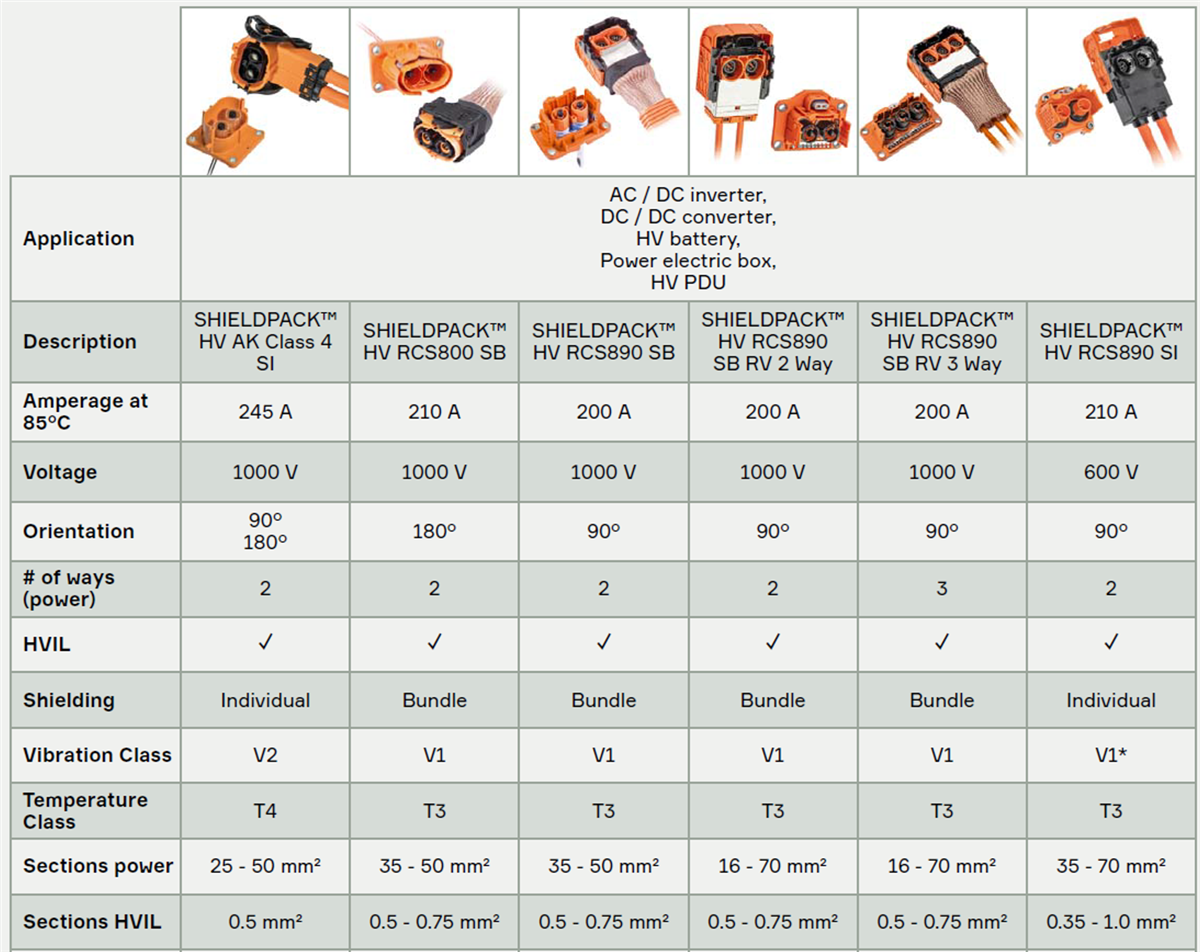

Selection Guide
Featured Connectors
Aptiv SHIELDPACK™ AK Series High-Voltage Connectors
AK Class 1, AK Class 4, and AK Passthrough high-voltage connectors for automotive applications.
Aptiv HV RCS 890 RV Connection System
Features ErgoMate Axial Mating Assist System on the harness connector for easy assembly.
Aptiv HV RCS 800 Electrical Vehicle Connectors
Comes in a compact package with a unique integrated electric interlock.
Aptiv HV RCS 890 Direct Mate 2 Way Connectors
Offers a 200A maximum current, 850VDC voltage, and IP67 sealing class.
Aptiv HV RCS 890 SW Connectors
High-voltage (600VDC) sealed-header connectors designed for compact and extreme environments.
Associated Product
Aptiv Electrification Solutions
Offers one of the most comprehensive portfolios of the high power connection systems.
