Bourns EV Applications
Bourns provides a broad range of reliable products ideal for electric vehicle (EV) applications. The portfolio features hybrid GMOV components with engineered MOV-GDT pairings, ChipGuard® MLC automotive ESD protectors with low capacitance and a fast response time, BMS signal transformers with AEC-Q200 compliance, and SMF4L-Q transient voltage suppressor diodes that are AEC-Q101 compliant. Additional Bourns components for EV applications include MF-USMF and MF-NSMF Multifuse® PTC resettable fuses with AEC-Q200 compliance as well as a wide selection of inductors and resistors. Bourns automotive products are reliable, effective, cost-effective, and manufactured in accordance with the IATF 16949:2016 standard.
Ebook

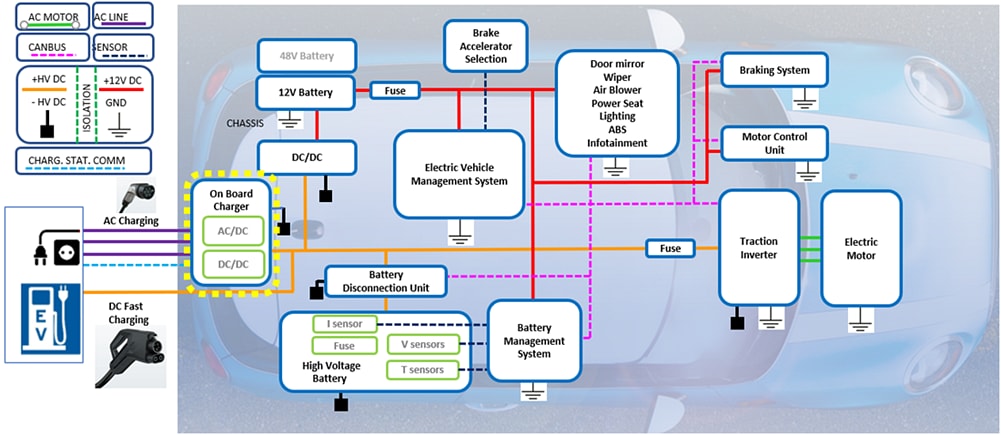

EV Architecture

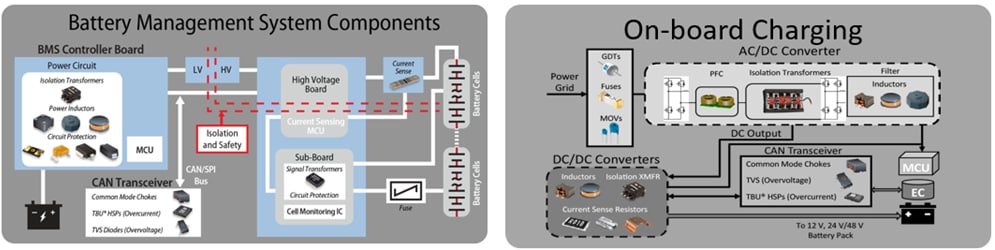

EV Markets
Featured Magnetic Products
Bourns HCT AEC-Q200 Uyumlu Güç Transformatörleri
Yüksek boşluk ve sürünme mesafesi, yüksek bağlanma faktörü ve verimlilik için ferrit toroid çekirdek.
Bourns BMS AEC-Q200-Compliant Signal Transformers
Offers a protection solution for isolated communications in industrial and consumer BMS.
Bourns SRF0703A Dual-Winding Shielded Power Inductors
Can be used in parallel, series, dual-inductor, & transformer configurations, magnetically shielded.
Bourns PQ Flat Wirewound Shielded Power Inductors
Low winding resistance, high saturation current of up to 100A, low DC resistance, and AC resistance.
Bourns SRN Automotive Semi-Shielded Power Inductors
AEC-Q200 qualified for auto applications, provides effective magnetic shielding with low radiation.
Featured Circuit Protection Products
Bourns Hybrid GMOV Components
Reduces degradation/catastrophic failure from transient surges or temporary overvoltage conditions.
Bourns ChipGuard® MLC Automotive ESD Protectors
Sub-1pF protectors designed specifically for use in automotive circuits requiring ESD protection.
Bourns MF-USMF Multifuse® AEC-Q200 PTC Resettable Fuses
AEC-Q200 and RoHS compliant and provides fast tripping resettable circuit protection.
Bourns MF-NSMF Multifuse® PPTC Resettable Fuses
1206 footprint, protects against overcurrent events with fast time-to-trip (TTT) as low as 0.05s.
Featured Resistor Products
Bourns CSM2F High Power Current Sense Resistors
6918, 7036, 8518, & 8536 footprint sizes, resistance as low as 50μΩ, continuous current up to 1000A.
Bourns Current Sense Resistors
Low resistance options and power ratings of up to 50W with resistance values as low as 0.05mΩ.
Bourns AEC-Q200 High Power Thick Film Resistors
Designed to operate in harsh environments exposed to higher levels of sulfur contamination.
Bourns PWR221-T-30 Power Resistors
Offers thick film on alumina ceramic, 30W power rating, and low inductance 0.1µH (maximum).
