Bourns Magnetics for High Voltage Applications
Bourns Magnetics for High Voltage Applications are ideal for isolated power and data transfer applications such as DC-DC converters, high voltage inverters for motor drives or photovoltaic systems, and high voltage battery monitoring systems. The HCT AEC-Q200-Compliant Power Transformers and the BMS AEC-Q200-compliant Signal Transformers provide elevated isolation from high-voltage hazards.
Features
- HCT AEC-Q200-Compliant Power Transformers
- Push-pull transformer (11Vµs)
- Nominal height of 6.5mm
- 800V working voltage
- Automotive-grade
- 450kHz, 50% duty cycle
- 350mA, 5V in/out
- Uses a 1:1.3 turns ratio
- Reinforced insulation
- Creepage (IEC 60664) and clearance is at least 8mm
- BMS AEC-Q200-compliant Signal Transformers
- Transformer + CMC
- 1600V working voltage
- Insulation functional
- Creepage (IEC 60664) is at least 8mm
- 12-pin SOICs
- Automotive-grade
- Minimum open circuit inductance
- Common mode rejection ratio
- Dictated by BMS monitoring IC OEM
Applications
- Isolated power
- Gate drivers
- BMS battery ICs
- Isolated data
- HV batteries

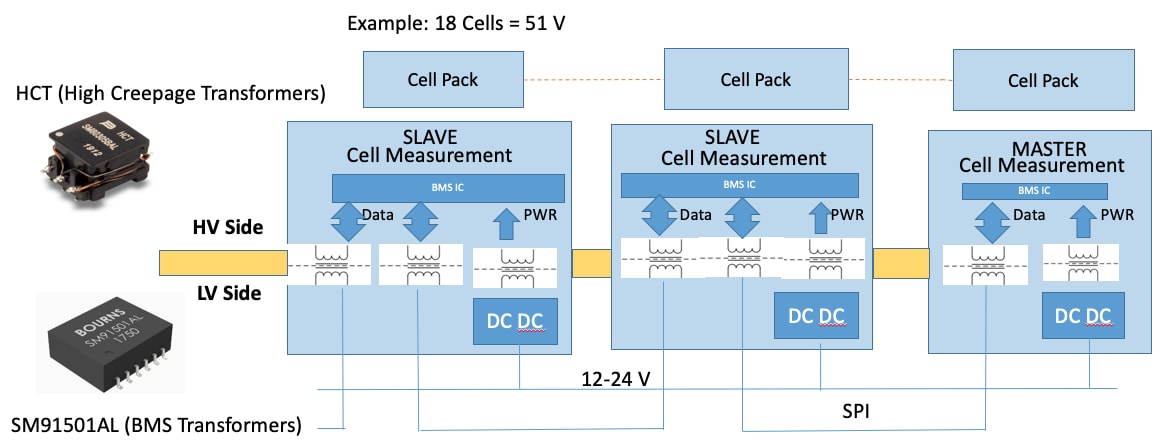

HV Battery Management
Videos
Related Products
Bourns BMS AEC-Q200-Compliant Signal Transformers
Offers a protection solution for isolated communications in industrial and consumer BMS.
Bourns HCT AEC-Q200 Uyumlu Güç Transformatörleri
Yüksek boşluk ve sürünme mesafesi, yüksek bağlanma faktörü ve verimlilik için ferrit toroid çekirdek.
Bourns Battery Management System
Connects to high-energy battery packs and manages the charging and discharging of the pack.
