Broadcom HFBR-14xxZ & HFBR-24xxZ 820nm Mini Link Series
Broadcom HFBR-14xxZ and HFBR-24xxZ 820nm Miniature Link Series of components are created to furnish cost-effective, high-performance, fiber-optic communication links for information systems and industrial applications with link distances of several kilometers. The HFBR-24x6Z, combined with a 125MHz analog receiver, results in data rates of up to 160Mbaud.
Transmitters and receivers are directly compatible with popular “industry-standard” connectors: ST, SMA, SC, and FC. The devices are fully specified with multiple fiber sizes, including 50/125μm, 62.5/125μm, 100/140μm, and 200μm.
The HFBR-14xxZ and HFBR-24xxZ 820nm Miniature Link Series are available in various options. For example, transmitters with the improved protection option P show an increased ESD resistance to the pins. The HFBR-141xPxZ integrated solution incorporates a Zener diode parallel to the LED.
The Broadcom HFBR-14x4Z high-power transmitter and the HFBR-24x6Z 125MHz receiver pair up to supply a duplex solution optimized for 100BASE-SX. The 100BASE-SX is a Fast Ethernet Standard (100Mb/s) at 850nm on multimode fiber.
Features
- RoHS compliant
- Low-cost transmitters and receivers
- Choice of ST, SMA, SC, or FC ports
- 820nm wavelength technology
- Signal rates up to 160Mbaud
- Compatible with 50μm/125μm, 62.5μm/125μm, 100μm/140μm, and 200μm plastic-clad silica (PCS) fiber
- Link distances up to several kilometers
- Repeatable ST connections within 0.2dB typical
- Unique optical port design for efficient coupling
- Pick and place, and wave solderable
- No board-mounting hardware required
- Wide operating temperature range -40°C to +85°C
- Conductive port option
Applications
- 100BASE-SX Fast Ethernet on 850nm
- Media/fiber conversion, switches, routers, hubs, and NICs on 100BASE-SX
- Local area networks
- Computer-to-peripheral links and computer monitor links
- Digital cross-connect links
- Central office switch/PBX links
- Video links
- Modems and multiplexers
- Suitable for Tempest systems
- Industrial control links
Associated Optic Receivers
Broadcom AFBR-24xxZ Optic Receivers
High EMC resistance and high sensitivity where over temperatures are achievable.
Products Available
- Option C (Conductive Port Receiver Option)
- Designed to withstand electrostatic discharge (ESD) of 25 kV to the optical port
- Significantly reduces the effect of electromagnetic interference (EMI) on receiver sensitivity
- Allows the designer to separate the signal and conductive port grounds
- Recommended for use in noisy environments
- Available on threaded ST port style receivers only
- The conductive port is connected to pins 1, 4, 5, and 8 through the Port Grounding Path insert
- Option M (Metal Port Option)
- Nickel-plated aluminum connector receptacle
- Designed to withstand electrostatic discharge (ESD) of 15kV to the optical port
- Significantly reduces the effect of electromagnetic interference (EMI) on receiver sensitivity
- Allows the designer to separate the signal and metal port grounds
- Recommended for use in very noisy environments
- Available on ST and threaded ST ports
- The metal port is connected to pins 1, 4, 5, and 8 through the Port Grounding Path insert
- Option P (Protection Improved Option)
- Designed to withstand higher electrostatic discharge (ESD) to the pins (Class 1C, HBM)
- Option T (Threaded Port Option)
- Allows ST-style port components to be panel-mounted
- Compatible with all current makes of ST multimode connectors
- Mechanical dimensions are compliant with MIL-STD-83522/13
- Maximum wall thickness when using nuts and washers from the HFBR-4411Z hardware kit is 2.8mm (0.11in.)
- Available on all ST ports

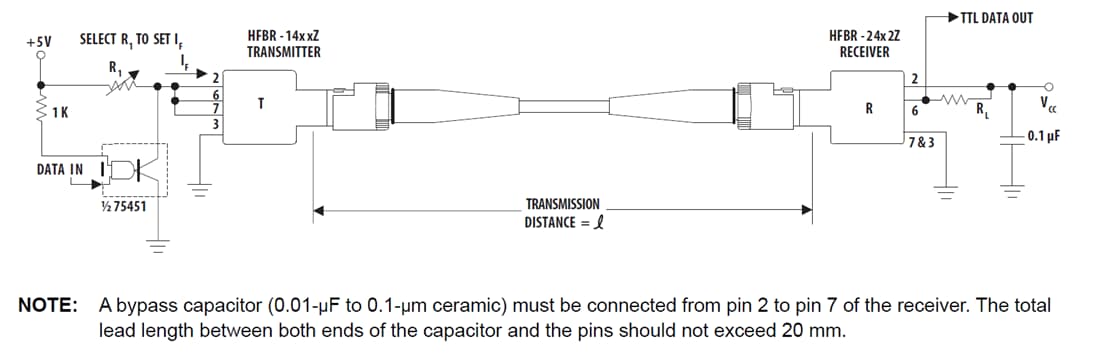

Typical Circuit Configuration
HFBR-x41xTZ ST Series Cross-Sectional View
