CUI Inc SCI30AC DC-DC Converter
CUI Inc SCI30AC DC-DC Converter features a two-port automotive USB quick charger with USB-A and USB Type-C® ports, each supporting up to 30W continuous power. This converter features a 12VDC to 24VDC automotive auxiliary power input and operates in a 0°C to +50°C temperature range. This DC-DC converter from CUI Inc is certified to IEC 62368-1, RoHS compliant, and designed for automotive applications. The SCI30AC device supports PPS, PD3.0, PD2.0, QC4+, QC4, QC3.0, QC2.0, AFC, FCP, SCP, PE2.0, PE1.1, and SFCP.
Features
- Up to 30W continuous power
- 2-port automotive USB quick charger
- USB-C port supports up to 30W
- USB-A port supports up to 30W
- 12VDC to 24VDC automotive auxiliary power input
- 0°C to +50°C operating temperature range
- Designed for automotive applications
- Supports PPS, PD3.0, PD2.0, QC4+, QC4, QC3.0, QC2.0, AFC, FCP, SCP, PE2.0, PE1.1, and SFCP
- Certified to IEC 62368-1
- RoHS compliant

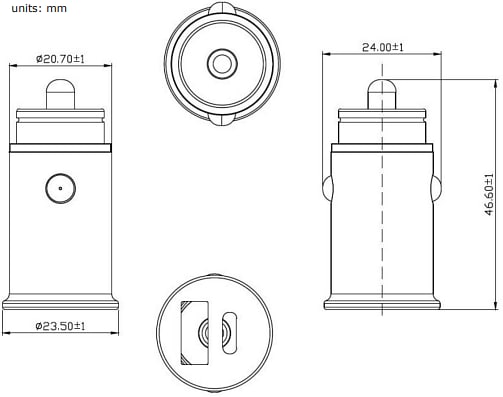

Mechanical Drawing
