EDAC Card Edge Connectors
EDAC Card Edge Connectors offer a high number of design options and many opportunities to tailor interconnect requirements to a designer's needs. These EDAC connectors offer additional contact terminations, extra mounting options, multiple card guide solutions, high-temperature insulators, and extra row spaces. EDAC Card Edge Connectors are suitable for applications such as power supplies, storage devices, navigational equipment, and industrial control.
Features
- Contact spacings of 0.050”, 0.100”, 0.125”, 0.156”, and 0.200”
- Gold plating in the mating contact area, tin-plated contact tails, with nickel underplating
- PCB hole, wire-wrap, wire hole, and other contact options
- From 2 to 188 contacts in a single- or dual-row configuration with or without card guides
- Most connectors are available with high-temperature +260°C insulators suitable for reflow solder production

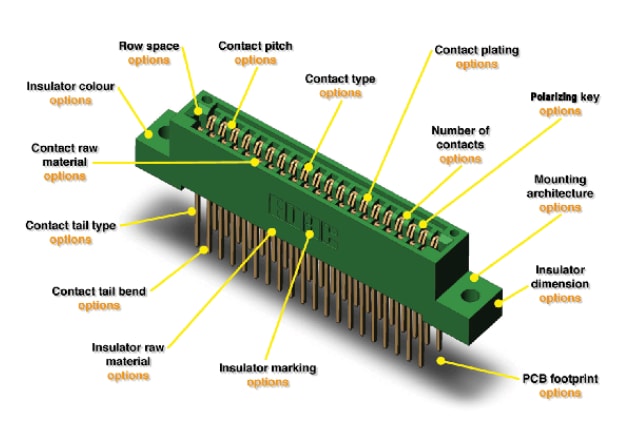

Connector Options
Related Connectors
EDAC 307 Series 3.96mm Pitch Card Edge Connectors
Features 3.96mm contact spacing by 5.08mm row spacing, offers 5A continuous current rating.
EDAC 305 Series 3.96mm Pitch Card Edge Connectors
Features dual row configuration with 3.56mm row spacing, and offers 5A continuous current rating.
Related Solutions
EDAC Medical Interconnect Solutions
A comprehensive range of connectors and cable assemblies designed for medical applications.
EDAC Industrial Interconnect Solutions
Various connectors with robust features for demanding industrial automation environments.
EDAC Agricultural Technology Interconnect Solutions
Offers reliable and durable connector solutions that can withstand harsh agricultural environments
