Infineon Technologies EZ-PD™ CCG6DF & CCG6SF USB Type-C Port Controllers

Update supplier per PCUR 2128231 EZ-PD™ CCG6DF and CCG6SF USB Type-C™ Port Controllers are dual-port and single-port USB Type-C™ controllers. The controllers comply with the USB Type-C™ and PD specifications. These devices provide a complete USB Type-C™ and USB-Power Delivery port control solution for PCs and notebooks. Both of these devices include a VBUS provider path load switch.

Features

  • USB-PD
    • Supports USB PD 3.0 specification
    • Fast Role Swap (FRS)
    • Extended Data Messaging
  • Type-C
    • Integrated current sources for DFP role (Rp)
      • Default current at 900mA
      • 1.5A
      • 3A
  • Integrated Rd resistor for UFP role
  • Integrated VCONN FETs to power EMCA cables
  • Integrated dead battery termination
  • Integrated high-voltage protection on CC and SBU pins to protect against accidental shorts to the VBUS pin on the Type-C connector
  • Integrated pass-through SBU Switch for 20V protection
  • Mux
    • Integrated USB 2.0 Analog Mux for USB 2.0 HS and UART data
  • Integrated Provider VBUS Load Switch
    • VBUS Provider Switch (5V/3A)
    • Slew rate controlled turn-on on the VBUS provider path, tolerant to 24V
    • Configurable hardware-controlled VBUS overvoltage, undervoltage, overcurrent, short circuit, reverse current protection, and thermal shutdown
    • VBUS high-side current sense amplifier capable of measuring the current across 5mΩ series resistance on the provider path
    • In response to Fast Role Swap request, turns OFF external consumer N-channel Field Effect Transistor (NFET) and turns ON internal provider load switch
  • LDO
    • Integrated high-voltage LDO operational up to 21.5V for dead battery mode operation
  • 32-bit MCU Subsystem
    • 48MHz Arm Cortex-M0 CPU
    • 64KB Flash
    • 96KB ROM
    • 16KB SRAM
  • Integrated Digital Blocks
    • Two integrated timers and counters to meet response times required by the USB-PD protocol
    • Four run-time serial communication blocks (SCBs) with reconfigurable I2C, SPI, or UART functionality
  • Authentication
    • True Random Number Generator
  • Clocks and Oscillators
    • Integrated oscillator eliminating the need for an external clock
  • Operating Range
    • VSYS (2.75V–5.5V)
    • VBUS (4V–21.5V)
  • Hot-Swappable I/Os
    • I2C pins from SCB0 are hot-swappable
  • Packages
    • CCG6DF 6.0mm x 6.0mm x 1.0mm, 96-ball BGA with 0.5mm pitch
    • CCG6SF 6.0mm x 6.0mm x 0.6mm, 48-pin QFN with 0.4mm pitch

Applications

  • Notebooks and desktops
  • Thunderbolt hosts, non-Thunderbolt hosts

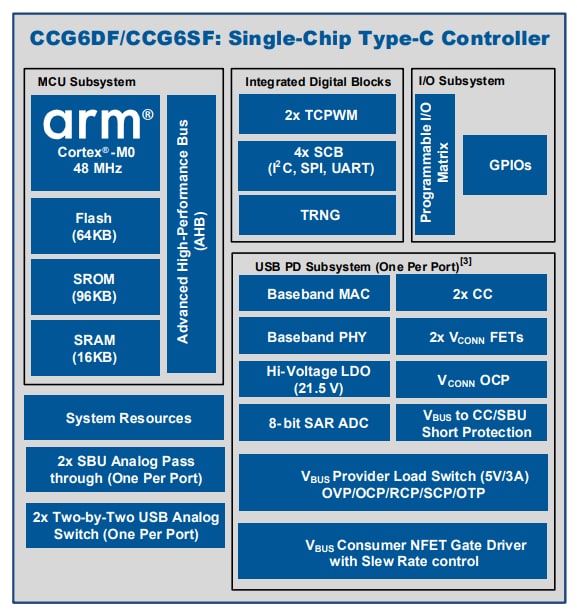

Block Diagram

Block Diagram - Infineon Technologies EZ-PD™ CCG6DF & CCG6SF USB Type-C Port Controllers
