Infineon Technologies Door Control Reference Board
Infineon Technologies Door Control Reference Board (REFDOORCONTROLTOBO1) demonstrates the features of several MOTIX™ devices. These devices include the TRAVEO™ II microcontroller, MOTIX™ SBC TLE9562, MOTIX Bridge TLE9166EQ, MOTIX Bridge BTM90x1, PROFET™ BTS7200, and OptiMOS™ 7 IAUCN04S7N040H. These components can all be integrated into an automotive door control module. This Infineon Technologies Door Control Reference Board enables fast development, a reduction of system design effort, and accelerated software design.
Features
- Combines TRAVEO II microcontroller, MOTIX SBC TLE9562, MOTIX Bridge TLE9166EQ, MOTIX Bridge BTM90x1, PROFET BTS7200, and OptiMOS 7 IAUCN04S7N040H
- Carefully optimized board design to achieve a compact size, while also ensuring optimal thermal performance and EMC
- Supplied over the input supply interface with 12VDC
- Protected against reverse polarity of the input voltage supply
- 10-pin serial wire debug (SWD) connector to flash the microcontroller
- CAN/LIN connector interfaces
- 5.5V to 20V supply voltage range
- 20A maximum supply current
- 5V pin ports
- 75mm x 75mm x 20mm board dimensions
- 4-layer PCB, outer layers 70μm and inner layers 35μm
- Class 5 (CISPR25, 150kHz to 108MHz) conducted emissions
- Automotive qualified
Applications
- Door modules
- Door zone controllers

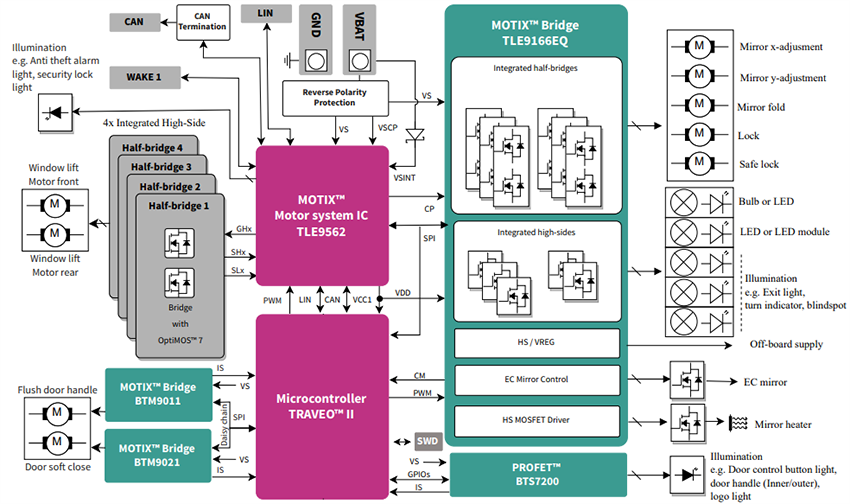

Block Diagram
Supported Devices
Infineon Technologies 32-bit TRAVEO™ T2G Arm® Cortex® Microcontrollers
Offer cutting-edge performance, safety, and security features for automotive applications.
Infineon Technologies TLE956x DC Motor System ICs
Combines DC motor control with supply functionalities such as power supply, CAN FD, and LIN.
Infineon Technologies MOTIX™ TLE9166EQ Multi Half-Bridge IC
Feature IC management for DC motors, SPI interface, timeout watchdog, and six high-side switches.
Infineon Technologies MOTIX™ Integrated Full-Bridge ICs
Delivers reliable and efficient solutions for operating voltages up to 42V.
Infineon Technologies PROFET™+2 12V Automotive Smart High-Side Switches
Single, dual, and four-channel devices (from 1.4mΩ to 200mΩ) in TSDSO-14/-24 exposed pad packages.
Infineon Technologies OptiMOS™ 7 40V Automotive Power MOSFETs
Offer high power density, low conduction losses, and optimized switching behavior.
