JAE Electronics BNC 75Ω Connectors
JAE BNC 75Ω Connectors are for 12G-SDI standardized by SMPTE/ITU (SMPTE-STD-2081-1, 2082-1) for 4K/8K broadcast connection. These JAE connectors feature compact, lightweight, superior impedance matching, and superior mountability. The BNC 75Ω connectors offer a standard PCB footprint recommended for straight and angle connectors. These connectors are ideal for connecting 4K/8K broadcasting equipment and other devices.
Features
- Compact, lightweight, and superior impedance matching
- Superior mountability
- Miniaturized shell allows for reduced soldering time for mounting (pre-heating time)
- Insulator has adopted heat-resistant resin with a concern of thermal deformation during mounting
- Improved mountability with pre-soldering on shell terminal (4 areas)
- Pre-mounting to PCB with a standard screw (M2.6) allows for improved soldering work
- Soldering inspection with lower plate cut-out for convenient post-mounting inspection
- The durability of 5000 mating cycles is guaranteed
- Common PCB footprint recommended for both straight and angle connectors
- RoHS compliant
Specifications
- 250Vrms rated voltage (AC)
- 1A rated current (DC)
- 16mm mounting pitch
- -40°C to +85°C operating temperature range
Applications
- Connections between 4K/8K broadcasting equipment and other various devices
Typical Characteristics

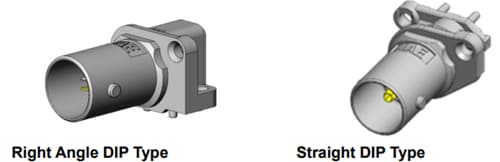

Right Angle and Straight DIP Type
