KYOCERA AVX KGN Series MLCC Capacitors

KYOCERA AVX KGN Series Multilayer Ceramic Chip (MLCC) Capacitors are high-capacity and low-ESL capacitors with rated currents up to 2A. These three-terminal capacitors enable noise reduction in a wide frequency range. The KGN capacitors are available in 4.3µF, 10µF, and 15µF capacitances. These MLCC capacitors are compact, high-capacity capacitors that reduce ESL by 88% at 1GHz. The KGN MLCC capacitors are available in an ultra-small 1mm x 0.5mm EIA 0402 package size. These KGN MLCC capacitors are ideal for smartphones, wearable devices, and tablets.

Features

  • Low ESL over a wide frequency band
  • Effective in reducing the number of decoupling capacitors
  • 2A rated current
  • R5 and R6 temperature characteristics
  • Ultra-small size of 1mm x 0.5mm EIA 0402 package size
  • Compact high-capacity capacitors that reduce ESL by 88% at 1GHz

Applications

  • Smartphones
  • Wearable devices
  • Tablets

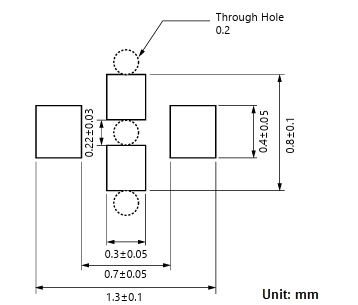

Dimensions

Mechanical Drawing - KYOCERA AVX KGN Series MLCC Capacitors
Mechanical Drawing - KYOCERA AVX KGN Series MLCC Capacitors
View Results ( 6 ) Page
Parça Numarası Veri Sayfası Kapasitans Dielektrik Voltaj Değer DC Yükseklik Uzunluk Sınıf
KGN05ZS60E435MH KGN05ZS60E435MH Veri Sayfası 4.3 uF X6S 2.5 VDC 0.5 mm (0.02 in) 1 mm (0.039 in) Class 2
KGN05BR50G156MH KGN05BR50G156MH Veri Sayfası 15 uF X5R 4 VDC 0.5 mm (0.02 in) 1 mm (0.039 in) Class 2
KGN05CR50G106MH KGN05CR50G106MH Veri Sayfası 10 uF X5R 4 VDC 0.5 mm (0.02 in) 1 mm (0.039 in) Class 2
KGN05CS60E106MH KGN05CS60E106MH Veri Sayfası 10 uF X6S 2.5 VDC 0.5 mm (0.02 in) 1 mm (0.039 in) Class 2
KGN05ZR50G435MH KGN05ZR50G435MH Veri Sayfası 4.3 uF X5R 4 VDC 0.5 mm (0.02 in) 1 mm (0.039 in) Class 2
KGN05ZS60G435MH KGN05ZS60G435MH Veri Sayfası 4.3 uF X6S 4 VDC 0.5 mm (0.02 in) 1 mm (0.039 in) Class 2
