Lumileds LUXEON V High Power LEDs

Lumileds LUXEON V High Power LEDs are designed to deliver maximum flux in a compact 4mm x 4mm footprint. These LEDs are manufactured using Patterned Sapphire Substrate (PSS) Chip Scale Package (CSP) technology. The LUXEON V LEDs offer a combination of high efficacy at high drive current with a low thermal resistance of 0.8ºC/W. These LEDs feature 4800mA DC forward current and 2.84V typical forward voltage.

The LUXEON V high-power LEDs include optimized radiation patterns that deliver high-intensity beams from smaller optics. Uniform optical source supports directional applications and imaging optics. Applications include high-bay, low-bay, outdoor stadium lighting, area lighting, spotlights, and specialty portables like torch lighting.

Features

  • Patterned Sapphire Substrate (PSS) technology
  • Up to 1700 lumens from a single compact source
  • 70 Color Rendering Index (CRI) for outdoor range
  • 4.8A maximum DC forward current
  • 2.84V (typical) forward voltage
  • 0.8ºC/W low thermal resistance enables efficient thermal management
  • Smaller heatsink provides more compact fixtures
  • High efficacy at high drive current provides design flexibility and supports high flux density fixtures
  • Optimized radiation patterns deliver high-intensity beams from smaller optics

Applications

  • High-Bay and Low-Bay
  • Outdoor stadium lighting and area lighting
  • Spotlights
  • Portables like torch lighting

Specifications

  • Single 3V die for optical uniformity
  • Chip Scale Package (CSP)
  • Uniform 4mm2 source size
  • No wire bonds that reduce reliability
  • No wire bonds that interfere with the light field

Resources

CSP vs. TFFC

Lumileds LUXEON V High Power LEDs

Package Outline

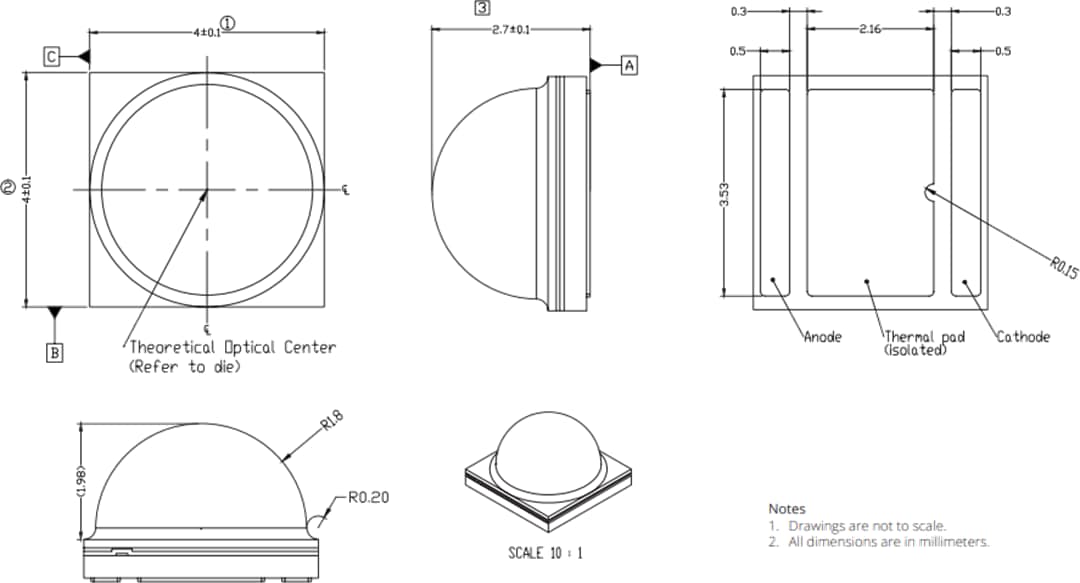

Mechanical Drawing - Lumileds LUXEON V High Power LEDs
