Luminus Devices SST-25-W High Power White LEDs

Luminus Devices SST-25-W High Power White LEDs are cool white emitters with a typical 1500lm output at 3.75A, +85°C. The Luminus Devices SST-25-W LEDs feature a vertical chip with high lumen density and a small emitting angle. These features are ideal for efficient optical beam shaping to achieve high-intensity, narrow beam angles, and long beam distances. Phosphor-on-chip with superior color uniformity over radiation angles enables excellent light quality of beam spots in directional lighting. Applications include industrial, portable, bicycle, and LED work lights.

Features

  • 1500lm typical output at 3.75A, +85°C
  • Vertical chip with high lumen density and small emitting angle, ideal for efficient optical beam shaping to achieve high intensity, narrow beam angle and long beam distance
  • Phosphor-on-chip with superior color uniformity over radiation angles, enabling excellent light quality of beam spots in directional lighting
  • 3.75A maximum drive current

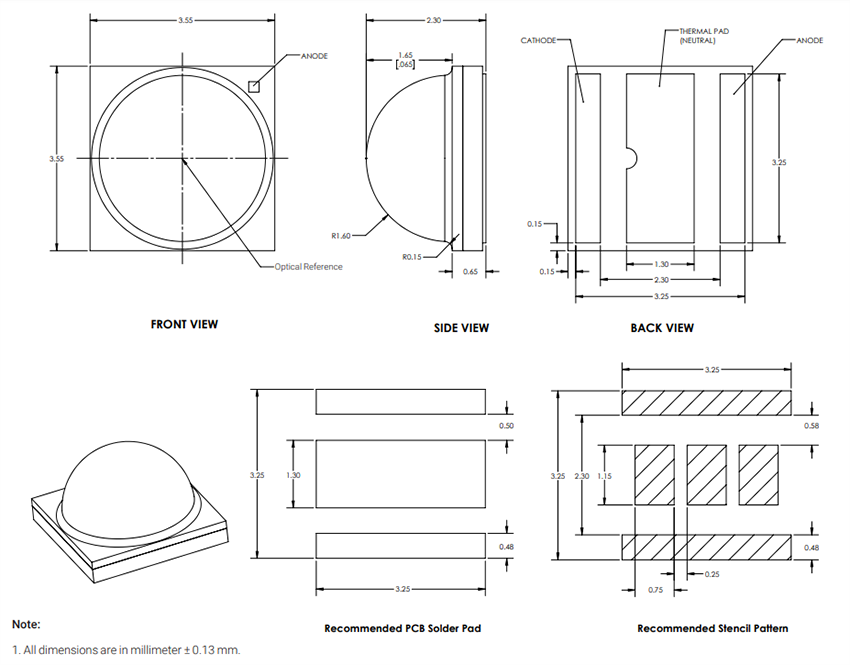

  • Surface mount, dome lens, single emitter, 2.5mm2 chip area
  • 5000K, 5700K, and 6500K color temperatures
  • Color rendering index
    • 70 minimum for 5000K and 5700K
    • 70 typical for 6500K
  • Low 1.2°C/W thermal resistance
  • ANSI-compatible chromaticity bins
  • Electrically isolated thermal path
  • 8kV HBM ESD rating per ANSI/ESDA/JEDEC JS-001
  • RoHS and REACH compliant

Applications

  • Portable lights
  • Bicycle lights
  • LED Work lights
  • Industrial lights

Specifications

  • 120° viewing angle
  • 0.10A to 3.75A DC forward current range
  • 5A maximum surge current
  • 2.7V to 3.3V forward voltage range
  • 5V maximum reverse voltage
  • 13W maximum power dissipation
  • +150°C maximum junction temperature
  • -40°C to +100°C operating temperature range
Luminus Devices SST-25-W High Power White LEDs
Yayınlandı: 2024-07-31 | Güncellenmiş: 2024-08-06
