Micro Commercial Components (MCC) Instrument Cluster Solutions
MCC Instrument Cluster Solutions delivers the reliability, precision, and rugged performance needed to support real-time vehicle data in today’s digitally enhanced dashboards. As automotive interiors evolve to feature digital and hybrid analog displays fully, MCC provides the discrete components that ensure safe, accurate, and energy-efficient operation across conventional and electric vehicles.
The instrument cluster serves as the central interface between the driver and the vehicle, delivering critical performance metrics and status alerts at a glance. Whether it’s a traditional 2D layout or an advanced 3D digital display, MCC-enabled clusters provide fast, accurate data to help drivers make informed decisions on the road. From monitoring speed and RPMs to reporting battery levels and system warnings, MCC supports electronics that power safer and provide more intuitive driving experiences.
MCC helps engineers develop instrument cluster systems that combine efficiency and clarity, ensuring drivers stay connected to vehicles with dependable performance on every journey.
Features
- Speedometer – Real-time speed tracking
- Tachometer – Engine RPM monitoring
- Fuel/battery gauge – Indicates energy levels in ICE and EVs
- Odometer and trip meter – Tracks total and trip-based mileage
- Temperature gauge – Monitors engine or battery temperature
- Warning and indicator lights – Alerts for critical systems (engine, oil, tire pressure, seatbelt, ABS, etc.)
- Supplemental info – MPG, range estimates, external temperature, and gear selection
Design Requirements
- To maintain real-time performance and withstand harsh automotive conditions, MCC’s automotive-grade semiconductors are designed to meet the highest standards of efficiency, reliability, and safety
- Efficient power use - Reduces power draw and supports longer battery life in EVs and hybrids
- Durability - Built to perform in extreme temperatures, vibration, and long-term use
- ESD/EMI protection - Shields sensitive electronics from static and electromagnetic noise
- Surge protection - Defends against voltage spikes and power transients
- Fast switching - Enables instant display updates and system responsiveness
- Low forward voltage drop - Maximizes energy efficiency for low-power circuits
- Thermal stability - Maintains consistent operation under thermal stress
- Standards compliance - AEC-Q101 qualified to ensure automotive reliability and performance
Additional Resources
Videos

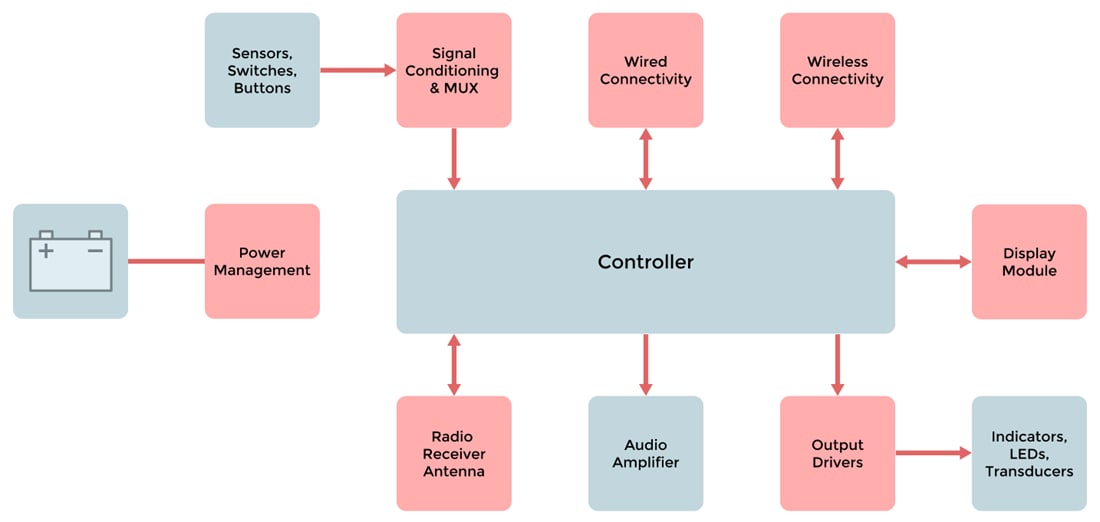

Block Diagram
