Microchip Technology Vienna 3-Phase PFC Reference Design
Microchip Vienna 3-Phase Power Factor Correction (PFC) Reference Design is a 3-phase Vienna PFC reference design for Hybrid Electric Vehicle/Electric Vehicle (HEV/EV) charger and high-power Switch Mode Power Supply (SMPS) applications. This reference design, which highlights Silicon Carbide (SiC) technology, uses Microchip's mSIC™ MOSFETs and Schottky Barrier Diodes (SBDs) to achieve 98.6% efficiency at 30kW output.
Features
- Designed for 30kW applications
- 1200V mSiC diodes and 700V mSiC MOSFETs with high avalanche/repetitive Unclamped Inductive Switching (UIS)
- 3-phase 380/400VRMS input voltage, 50Hz or 60Hz
- 140kHz switching frequency
- 700V DC output voltage
- PCB layout optimized for safety, current stress, mechanical stress, and noise immunity
- dsPIC33CH Digital Signal Controller (DSC) for digital control

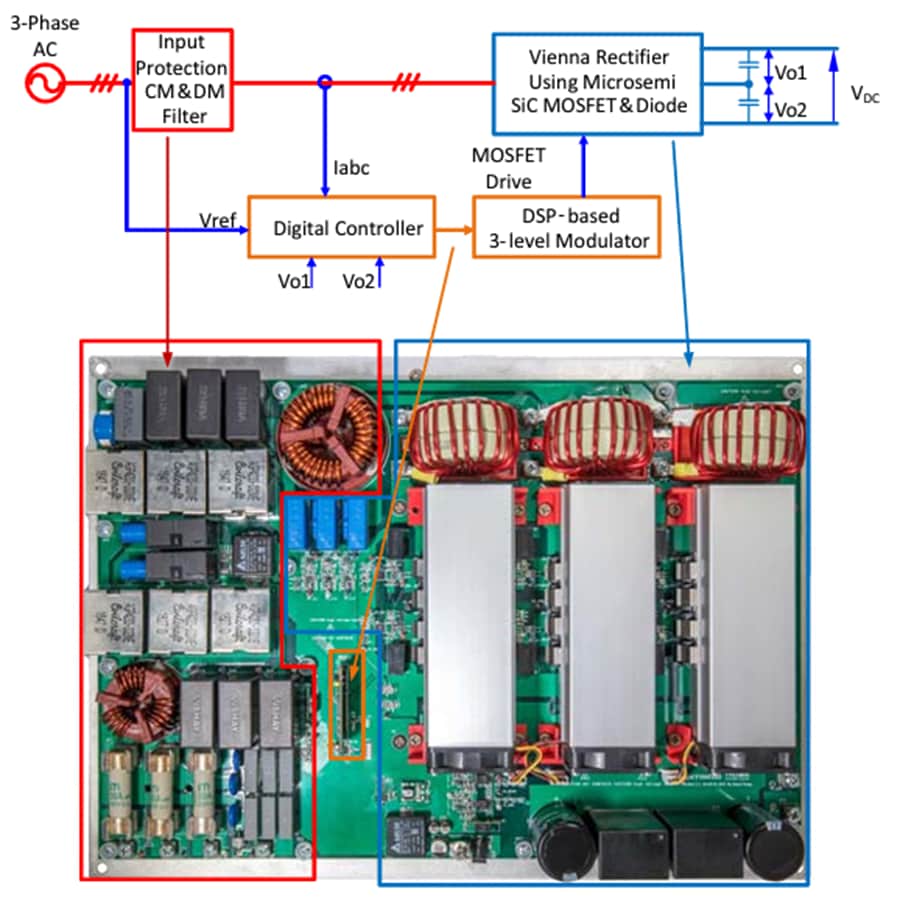

Block Diagram

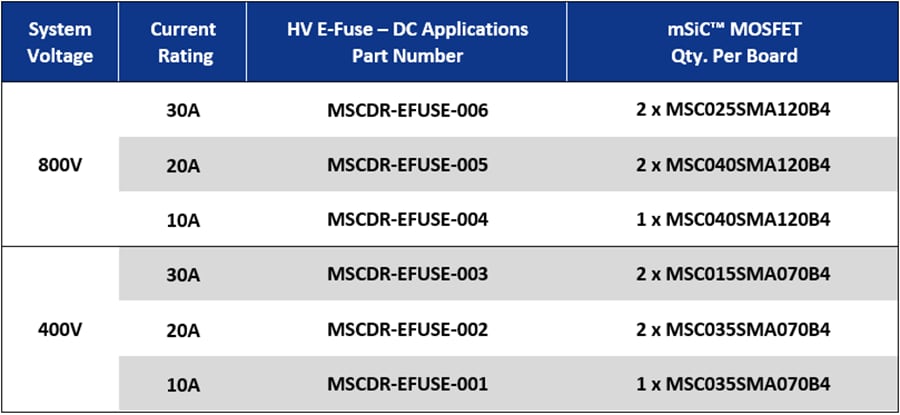

Part Selection Guide
