Monolithic Power Systems (MPS) MP4473 & MPQ4473 Synchronous Step-Down Converters

Monolithic Power Systems (MPS) MP4473 and MPQ4473 Synchronous Step-Down Converters are fully integrated, high-frequency, rectified, switch-mode converters. These synchronous step-down converters are available in a compact 3mm x 4mm 20-pin QFN package, providing a compact solution with a 3.5A continuous output current over a wide input supply range with excellent load and line regulation. The devices offer a fast transient response and good stability. Other features include short-circuit protection (SCP), overcurrent protection (OCP), undervoltage protection (UVP), and thermal shutdown (TSD). MPS MP4473 and MPQ4473 Synchronous Step-Down Converters require minimal, readily available, standard, external components. The MPQ4473 modules are AEC-Q100 qualified.

Features

  • Wide 4.5V to 36V operating input range
  • Guaranteed 3.5A continuous output current
  • Internal 40mΩ high-side, 20mΩ low-side power MOSFETs
  • Proprietary switching loss reduction technology
  • 1% reference voltage
  • Programmable soft-start time
  • Low drop-out mode
  • 200kHz to 1MHz switching frequency
  • SCP, OCP, UVP, and thermal shutdown
  • Output adjustable from 0.8V to 0.9×VIN
  • 3mm x 4mm, 20-pin, QFN package
  • Available in AEC-Q100 Grade 1 (MPQ4473)

Applications

  • Notebook systems and I/O power
  • Automotive systems
  • Networking systems
  • Industrial supplies
  • Optical communications systems
  • Distributed power and point-of-load (PoL) systems

MP4473 Typical Application

Application Circuit Diagram - Monolithic Power Systems (MPS) MP4473 & MPQ4473 Synchronous Step-Down Converters

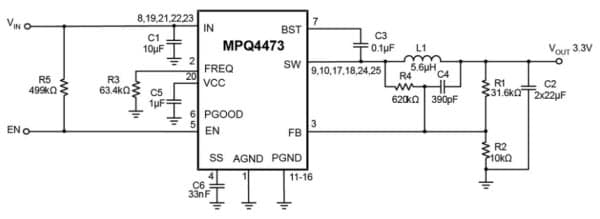

MPQ4473 Typical Application

Application Circuit Diagram - Monolithic Power Systems (MPS) MP4473 & MPQ4473 Synchronous Step-Down Converters
View Results ( 6 ) Page
Parça Numarası Veri Sayfası Açıklama Seri
MPQ4473GL-AEC1-P MPQ4473GL-AEC1-P Veri Sayfası Anahtarlama Voltaj Düzenleyicileri 3.5A 36V Sync StpDwn Conv AEC-Q100 MPQ4473
MP4473GL-P MP4473GL-P Veri Sayfası Anahtarlama Voltaj Düzenleyicileri 3.5A 36V Sync Step Down Converter MP4473
MP4473GL-Z MP4473GL-Z Veri Sayfası Anahtarlama Voltaj Düzenleyicileri 3.5A 36V Sync Step Down Converter MP4473
MPQ4473GL-AEC1-Z MPQ4473GL-AEC1-Z Veri Sayfası Anahtarlama Voltaj Düzenleyicileri 3.5A 36V Sync StpDwn Conv AEC-Q100 MPQ4473
MPQ4473GL-P MPQ4473GL-P Veri Sayfası Anahtarlama Voltaj Düzenleyicileri 3.5A 36V Sync Step Dwn Conv Indstrl HE MPQ4473
MPQ4473GL-Z MPQ4473GL-Z Veri Sayfası Anahtarlama Voltaj Düzenleyicileri 3.5A 36V Sync Step Dwn Conv Indstrl HE MPQ4473
