Nexperia 74LVC1G3157 2-Channel Analog MUX/DEMUX
Nexperia 74LVC1G3157 2-Channel Analog Multiplexer/Demultiplexer offers one digital select input (S), two independent inputs/outputs (Y0, Y1), and a common input/output (Z). Schmitt-trigger action at the select input makes the Nexperia 74LVC1G3157 2-channel Analog Multiplexer/Demultiplexer tolerant of slower input rise and fall times across the entire VCC range from 1.65V to 5.5V.
Features
- Wide supply voltage range from 1.65V to 5.5V
- Very low ON resistance:
- 7.5Ω (typical) at VCC = 2.7V
- 6.5Ω (typical) at VCC = 3.3V
- 6Ω (typical) at VCC = 5V
- Switch current capability of 32mA
- Break-before-make switching
- High noise immunity
- CMOS low power consumption
- TTL interface compatibility at 3.3V
- Latch-up performance meets requirements of JESD 78 Class I
- ESD protection:
- HBM JESD22-A114F exceeds 2000V
- MM JESD22-A115-A exceeds 200V
- Control input accepts voltages up to 5.5V
- Multiple package options
- Specified from -40°C to 85°C and from -40°C to 125°C

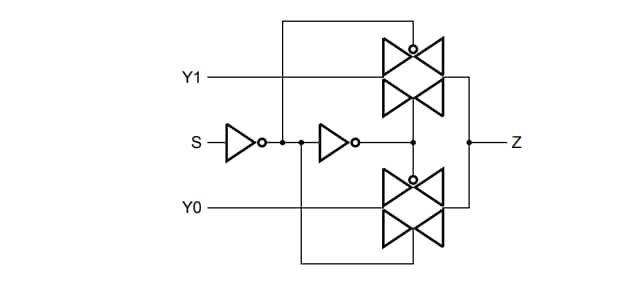

Logic diagram
