NXP Semiconductors i.MX 8M Nano UltraLite Applications Processor
NXP Semiconductors i.MX 8M Nano UltraLite Applications Processor combines state-of-the-art media-specific features with high-performance processing and is optimized for the lowest power consumption. The i.MX 8M NanoUL processors are part of NXP’s EdgeVerse™ edge computing platform. The built-in, high-performance, and power-efficient 14FinFET technology delivers scalable, secure, and cost-effective quad-core processing to edge IoT devices.
The NXP i.MX 8M Nano UltraLite Applications Processor features advanced implementation of a quad Arm® Cortex®-A53 core, which operates at speeds of up to 1.5GHz. A general-purpose Cortex-M7 running up to 750MHz core processor is utilized for real-time and low-power processing. The i.MX 8M Nano UltraLite is housed in a compact 11mm x 11mm package.
The i.MX 8M Nano UltraLite Applications Processor is an ideal choice for smart, connected, power-efficient devices requiring graphics, vision, voice control, intelligent sensing, and general-purpose processing.
Features
- Quad-core Arm Cortex-A53 core 1.4GHz-1.5GHz per core
- Cortex-M7 up to 750MHz for heterogenous multicore processing
- Multi-channel audio and digital microphone inputs
- Wide range of connectivity options for Wi-Fi/BT, Ethernet, USB and media storage
- Low-power (LPDDR4) and standard (DDR3L/DDR4) memory support
- Qualified for commercial operation (0℃ to +95℃ Tj) and industrial operation (-40℃ to +105℃ Tj), minimum of 10-year operational lifetime
- Multiple product offerings in a compact 11mm x 11mm package
Applications
- Consumer and professional audio systems
- Portable audio devices
- Wireless/networked speakers
- Sound bars
- Audio/video receiver
- Public address systems
- Smart home and building automation
- Smart light control
- HVAC climate control
- IoT gateway
- Smart appliances
- Service robot, e.g. vacuum, mower, cleaner
- Elevator control panel
- Industrial HMI, vision and automation
- Barcode or image scanner
- Industrial printer
- Machine visual inspection
- Factory automation
- Test and measurement
- Mobility and logistics
- Enterprise, commercial and healthcare
- Mobile patient care, e.g. infusion pump, respirator
- Blood pressure monitor
- Activity/wellness monitor
- Exercise equipment
Associated Products
NXP Semiconductors i.MX 8M Nano Applications Processor
Providing secure, affordable, and intelligent performance and edge computing.
NXP Semiconductors NT Dual Supply Translating Transceivers
Auto direction sensing, enables bidirectional voltage level translation, and wide supply voltage.
NXP Semiconductors NXP NTS010x Translating Transceivers
1, 2, or 4-bit dual supply translating transceivers with auto direction sensing.
NXP Semiconductors PCA9450x Power Management ICs
Supports i.MX 8M family processors in battery portable and adapter non-portable applications.
Associated Kit
NXP Semiconductors i.MX 8M Nano UltraLite Evaluation Kit
Provides a platform for rapid evaluation of the i.MX 8M Nano UltraLite applications processors.

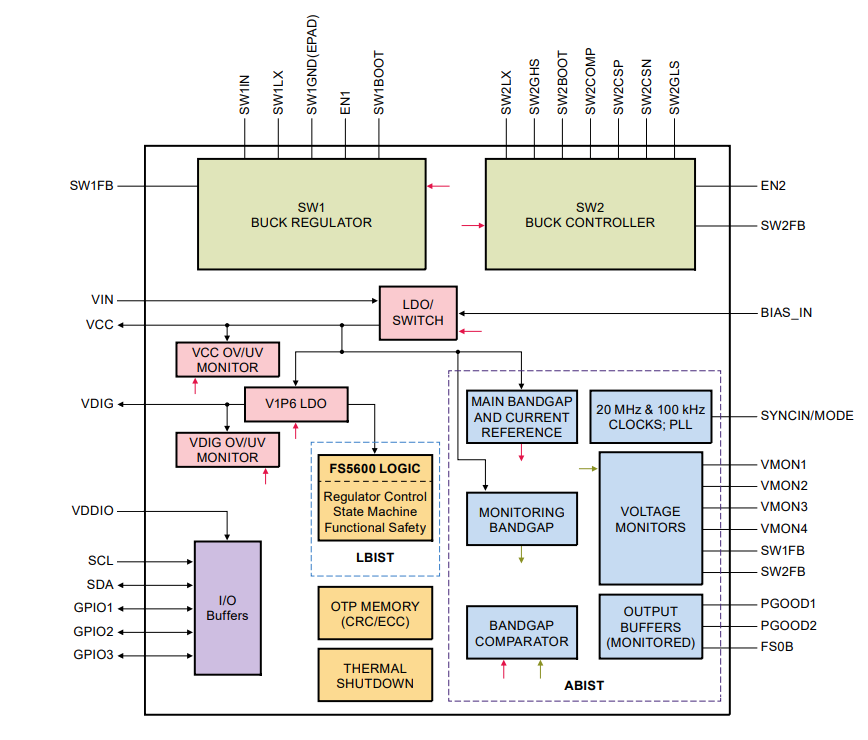

Block Diagram
