onsemi NVXK2VR80WxT2 Silicon Carbide (SiC) Modules

onsemi NVXK2VR80WxT2 Silicon Carbide (SiC) Modules are 1200V, 80mΩ 3-phase bridge power modules housed in a Dual Inline Package (DIP). These SiC modules are compactly designed to have low total module resistance. The NVXK2VR80WxT2 power modules are automotive-qualified per AEC-Q101 and AQG324. These power modules are lead-free and ROHS, UL94V-0 compliant. The NVXK2VR80WxT2 SiC modules' temperature sensing and the lowest thermal resistance make them ideal for PFC onboard chargers in xEV applications.

Features

  • DIP Silicon Carbide (SiC) 3-phase bridge power module
  • 1200V drain to source voltage (VDSS)
  • 20A continuous drain current (ID) - (NVXK2VR80WDT2)
  • 31A continuous drain current (ID) - (NVXK2VR80WXT2)
  • 80mΩ (typical) drain to source on-resistance (RDS(ON))
  • -55°C to 175°C operating Junction temperature (TJ) range
  • Creepage and clearance per IEC60664−1 and IEC 60950−1
  • Compact design for low total module resistance
  • Module serialization for full traceability
  • Lead-free
  • RoHS and UL94V-0 compliant
  • Automotive qualified per AEC-Q101 and AQG324

Applications

  • PFC for on-board charger in xEV applications
  • 11kW to 22kW on-board charger for EV-PHEV

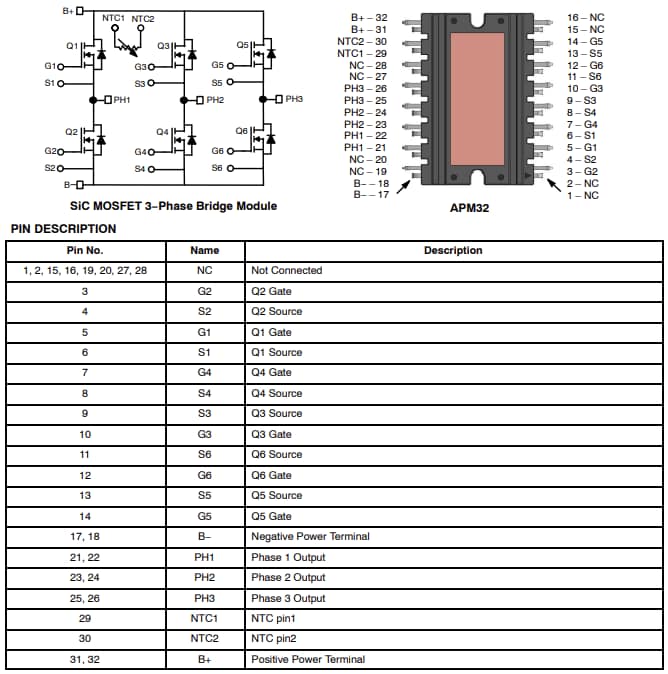

SiC MOSFET 3-Phase Bridge Module

onsemi NVXK2VR80WxT2 Silicon Carbide (SiC) Modules

Related Modules

onsemi NVXK2PR80WXT2 Silicon Carbide (SiC) Module

1200V, 80mΩ, and 31A full-bridge power module, housed in a Dual Inline Package (DIP).

Learn Moreonsemi NVXK2PR80WXT2 Silicon Carbide (SiC) Module hakkında View Productsonsemi NVXK2PR80WXT2 Silicon Carbide (SiC) Module ile ilgili

onsemi NVXK2TR40WXT Silicon Carbide (SiC) Module

1200V, 40mΩ, and 27A dual half-bridge EliteSiC power module, housed in a Dual-Inline Package (DIP).

Learn Moreonsemi NVXK2TR40WXT Silicon Carbide (SiC) Module hakkında View Productsonsemi NVXK2TR40WXT Silicon Carbide (SiC) Module ile ilgili

onsemi NVXK2TR80WDT Silicon Carbide (SiC) Module

1200V, 80mΩ, and 20A dual half-bridge EliteSiC power module, housed in a Dual-Inline Package (DIP).

Learn Moreonsemi NVXK2TR80WDT Silicon Carbide (SiC) Module hakkında View Productsonsemi NVXK2TR80WDT Silicon Carbide (SiC) Module ile ilgili

onsemi NVXK2VR40WXT2 Silicon Carbide (SiC) Module

1200V, 40mΩ, and 55A 3-phase bridge power module, housed in a Dual Inline Package (DIP).

Learn Moreonsemi NVXK2VR40WXT2 Silicon Carbide (SiC) Module hakkında View Productsonsemi NVXK2VR40WXT2 Silicon Carbide (SiC) Module ile ilgili
View Results ( 2 ) Page
Parça Numarası Veri Sayfası Id - Sürekli Tahliye Akımı Pd - Güç Dağılımı Rds Açık - Tahliye-Kaynağı Direnci Vds - Tahliye-Kaynak Arıza Voltajı Vgs - Kapı-Kaynağı Voltajı Vgs th - Kapı-Kaynağı Eşik Voltajı Kanal Sayısı Yükseliş zamanı Düşüş Zamanı Uzunluk Genişlik Yükseklik Paket / Kasa Paketleme RoHS - Mouser
NVXK2VR80WDT2 NVXK2VR80WDT2 Veri Sayfası 20 A 82 W 116 mOhms 1.2 kV - 15 V, + 25 V 4.3 V 6 Channel 12 ns 9 ns 44.2 mm 29 mm 5.8 mm APM-32 Tube Y
NVXK2VR80WXT2 NVXK2VR80WXT2 Veri Sayfası 31 A 208 W 116 mOhms 1.2 kV - 15 V, + 25 V 4.3 V 6 Channel 12 ns 9 ns 44.2 mm 29 mm 5.8 mm APM-32 Tube Y
Yayınlandı: 2024-08-06 | Güncellenmiş: 2024-08-28
