Rectron P6KE GPP Transient Voltage Suppressor Diodes

Rectron P6KE GPP (Glass Passivation Pellet) Transient Voltage Suppressor Diodes feature excellent clamping capability, low Zener impedance, and fast response time. These diodes operate at 600W peak power dissipation at 1ms, 5W steady-state power dissipation (PM(AV)), and 100A peak forward surge current (IFSM).

Features

  • Glass passivated chip construction
  • Excellent clamping capability
  • Low Zener impedance
  • Fast response time

Specifications

  • 600W peak power dissipation at 1ms
  • 5W steady-state power dissipation (PM(AV))
  • 100A peak forward surge current (IFSM)
  • -55°C to 150°C operating temperature range

Dimensions Diagram

Mechanical Drawing - Rectron P6KE GPP Transient Voltage Suppressor Diodes

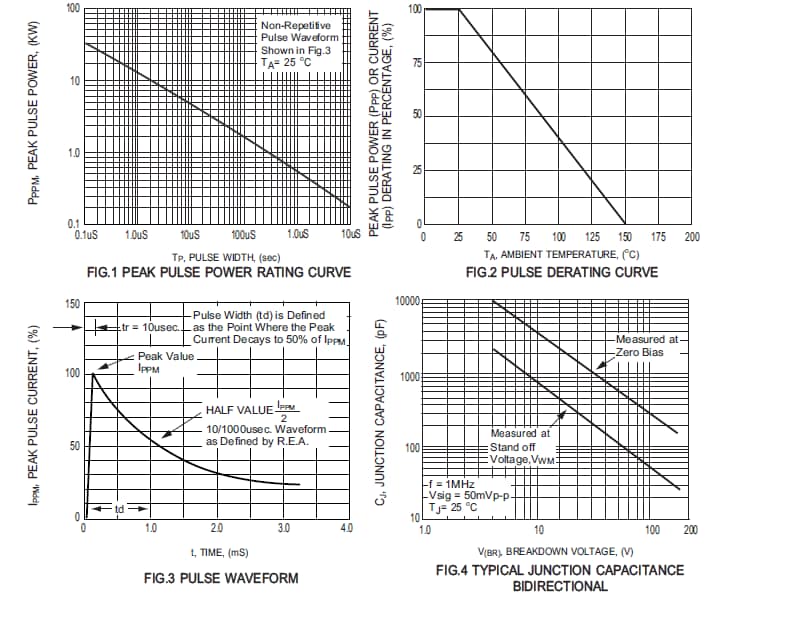

Characteristic Curves

Performance Graph - Rectron P6KE GPP Transient Voltage Suppressor Diodes
View Results ( 36 ) Page
Parça Numarası Veri Sayfası Çalışma Voltajı Arıza Voltajı Sıkıştırma Voltajı Minimum Çalışma Sıcaklığı Maksimum Çalışma Sıcaklığı RoHS - Mouser
P6KE200A-T P6KE200A-T Veri Sayfası 171 V 210 V 274 V - 55 C + 150 C Y
P6KE12-T P6KE12-T Veri Sayfası 9.72 V 10.8 V 17.3 V - 55 C + 150 C Y
P6KE15-T P6KE15-T Veri Sayfası 12.1 V 13.5 V 22 V - 55 C + 150 C E
P6KE150-T P6KE150-T Veri Sayfası 121 V 135 V 215 V - 55 C + 150 C E
P6KE150A-T P6KE150A-T Veri Sayfası 128 V 158 V 207 V - 55 C + 150 C Y
P6KE15C-B P6KE15C-B Veri Sayfası 12.1 V 13.5 V 22 V - 55 C + 150 C E
P6KE160C-T P6KE160C-T Veri Sayfası 130 V 144 V 23.5 V - 55 C + 150 C E
P6KE18-T-S-R01-B P6KE18-T-S-R01-B Veri Sayfası 26 V - 55 C + 150 C Y
P6KE18-T-S-R01-T P6KE18-T-S-R01-T Veri Sayfası 26 V - 55 C + 150 C Y
P6KE18C-T P6KE18C-T Veri Sayfası 14.5 V 16.2 V 26 V - 55 C + 150 C E
Yayınlandı: 2021-05-25 | Güncellenmiş: 2022-03-11
