Renesas Electronics Battery Management with Life Indicator
Renesas Battery Management with Life Indicator is a reference design for battery-powered applications that require a charging system with a mechanism to display the battery life. The E-paper display provides a low power option for a life indicator that the user can access at any time.
Features
- The RAJ240045 is a fuel gauge IC (FGIC) that provides a full battery management system
- The ISL9238 is a charging IC that has a wide range input of 3.2V to 23.4V and an output range of 2.4V to 18.30V
- The RL78/G14 is a highly flexible MCU that provides low current consumption and high performance

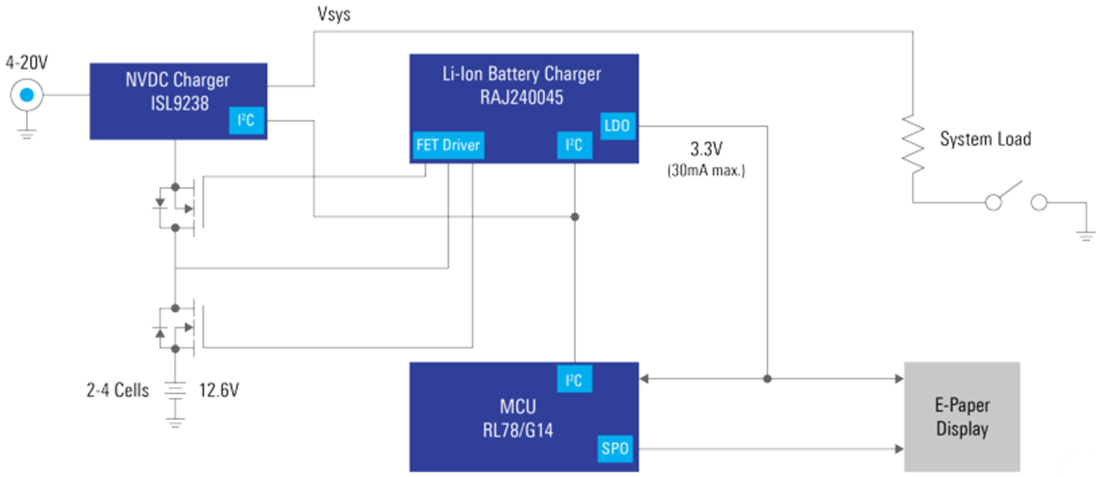

System Block Diagram
Featured Products
Renesas Electronics RL78 Low Power 8-Bit & 16-Bit Microcontrollers
Ultra lower power MCUs with an extensive range of powerful peripheral functions.
Renesas Electronics ISL9238 Buck-Boost NVDC Charger
Provides the NVDC charging function, system bus regulation and protection features.
Additional Application Solutions
See how Renesas' complementary product portfolios of Analog + Power + Embedded Processing work together to deliver comprehensive solutions.
