Renesas Electronics RZ/G3S Evaluation Kits
Renesas Electronics RZ/G3S Evaluation Kits are in the SMARC form factor and are designed to evaluate the functionality of RZ/G3S Microcontrollers (MCUs). The RZ/G3S microcontrollers reduce the power consumption of the MPU significantly by adopting the design with separated power domains. These microcontrollers offer PCIe support. These RZ/G3S evaluation kits support 5G wireless connectivity with PCI express and ensure data is safely transferred in the IoT Network. The RZ/G3S evaluation kits feature joint and low power management to enable long battery life in Internet of Things (IoT) devices. These RZ/G3S evaluation kits are used in fleet management devices, equipment trackers, smart meters, and smart home gateways.
Features
- Carrier board
- USB Type-C with USB-PD support (input range: 5V2A to 20V4A)
- Micro SD card slot with default, high-speed, UHS-I/SDRR50, SDR104 transfer modes support
- 4x USB2.0 Host interface, Type A
- 1x USB2.0 OTG interface, Type micro AB
- 1x USB3.2 Host interface, Type A
- 1x USB3.2 OTG interface, Type C
- Speaker, Headphone, Microphone, Auxiliary
- 2x Gigabit Ethernet interface supporting 10/100/1000 Mbps data rate on the RJ45 connector
- PCIe 4-lane slot
- M.2 Key E interface
- M.2 Key B interface and SIM card interface
- 2x CAN interface
- 2x UART interface for debugging (1 is micro-USB)
- 2x LVDS/MIPI-DSI display connector (Support MIPI-DSI to HDMI in channel 0)
- HDMI interface
- 2x MIPI CSI-2 camera connector
- 3x PMOD connectors (Type-2A SPI, Type-3A UART and Type-6A I2C)
- Coin cell battery holder
- GPIO pin header
- GPIO pin header for M.2 Key B
- ISL28022FRZ current monitor for the module power supply
- 190mm x 130mm, 8-layer PCB
- SMARC module
- RZ/G3S (R9A08G045S33GBG), 14mm × 14mm, 0.5mm pitch, 456-pin PBGA
- 1GB 512Mx16 LPDDR4 SDRAM supporting data rate up to 1600MT/s
- Micro SD card slot with default, high-speed, UHS-I/SDRR50, SDR104 transfer modes support
- 64GB eMMC flash with HS200 transfer mode support
- Micro SD card slot with default, high-speed transfer modes support
- 128Mbit Quad SPI flash memory
- Supports 10-pin JTAG connection from a debugger
- Supports ADC connection for 8 channels
- I3C interface
- 5x ISL28025 for current monitoring
- 2x Gigabit Ethernet Transceiver
- 9-channel PMIC (RAA215300)
- 6-channel clock generator
- 82mm x 80mm, 6-layer PCB
- Secure kit type available (RTK9845S37S01000BE)
Applications
- Fleet management device
- Equipment tracker
- Smart meter
- Smart home gateway
Kit Contents
- RZ/G3S SMARC module board
- RZ SMARC Series JTAG adapter cable
- RZ/G3S SMARC Carrier Board II
- USB Type-A to USB Micro-B cable
- Accessories bag
- Machine screws
- Spacer

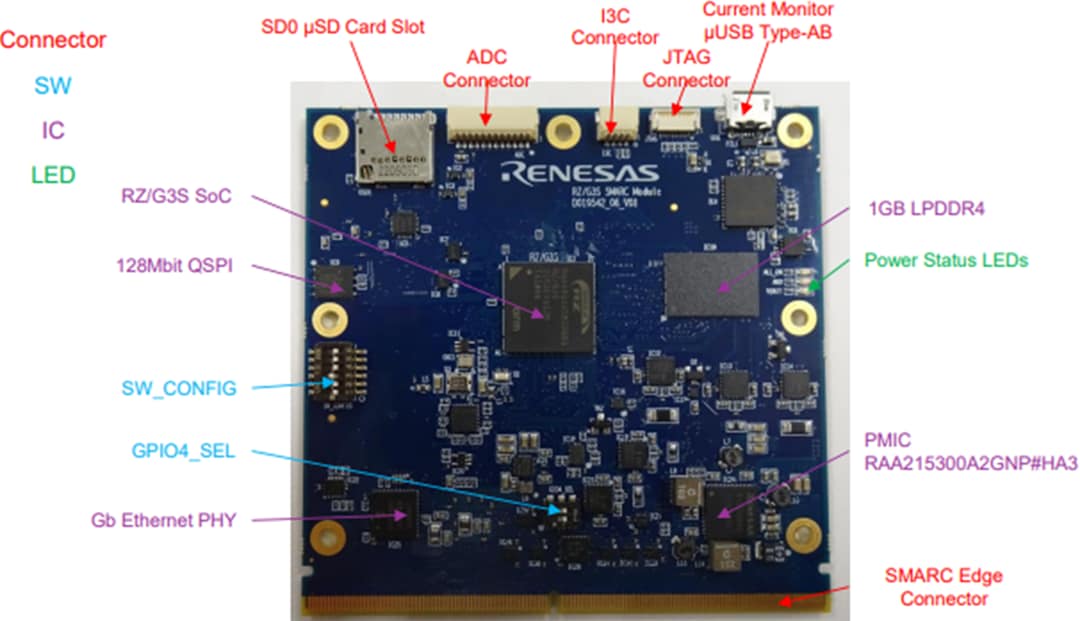

SMARC Module Layout

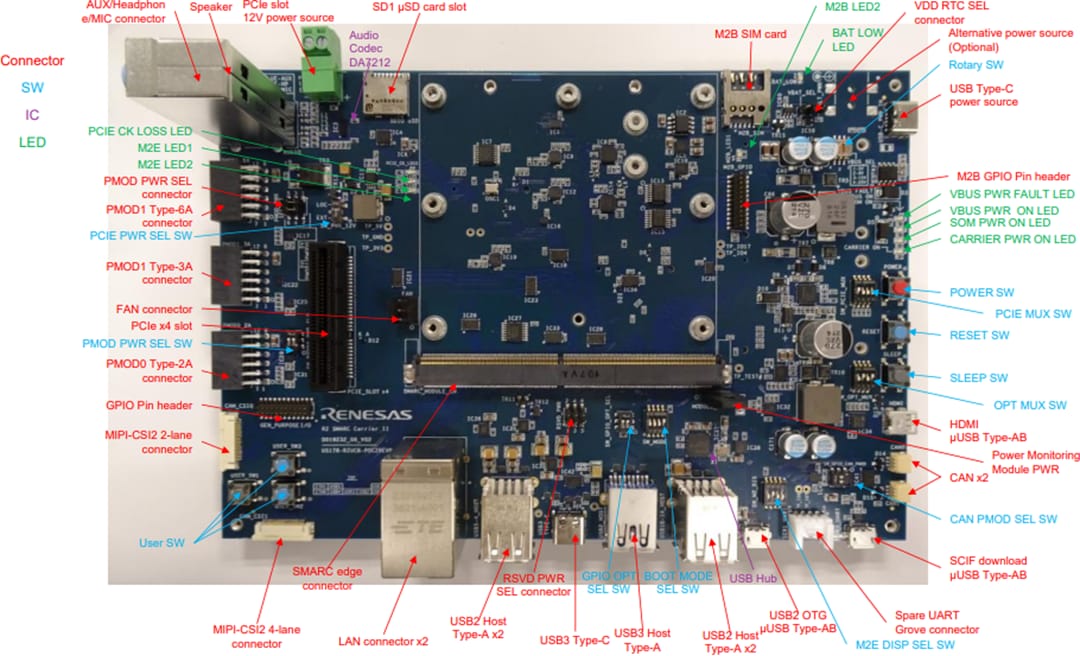

Carrier Board Layout
