ROHM Semiconductor CSL901xW Surface Mount Chip LEDs

ROHM Semiconductor CSL901xW Surface Mount Chip LEDs are low current emission type LEDs. The devices feature AlGaInP, a 1.8V forward voltage, and a brightness rank of 1. The ROHM CSL901xW is available with milky white diffused resin in a 1.6mm x 8mm (t=0.55) package size.

Features

  • 20mA IF@VF
  • 1.8V Forward voltage (Typ)
  • Brightness rank of 1
  • Operating temperature -40°C to 85°C
  • Storage temperature -40°C to 100°C
  • 1.6mm x 8mm (t=0.55) Package size

Applications

  • Home appliance
  • Industrial equipment

Additional Resources

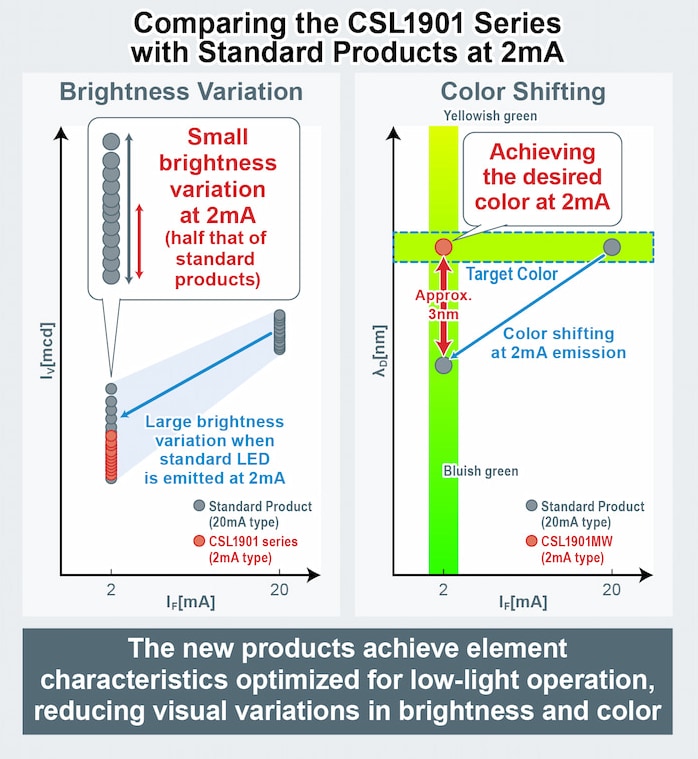

Comparison Chart

Performance Graph - ROHM Semiconductor CSL901xW Surface Mount Chip LEDs

Applications with LEDs

Infographic - ROHM Semiconductor CSL901xW Surface Mount Chip LEDs
View Results ( 5 ) Page
Parça Numarası Veri Sayfası Açıklama Dalga Boyu/Renk Sıcaklığı
CSL1901DW1 CSL1901DW1 Veri Sayfası Tek Renkli LED'ler LED ORANGE 605 nm
CSL1901MW1 CSL1901MW1 Veri Sayfası Tek Renkli LED'ler LED YELLOW/GREEN 570 nm
CSL1901UW1 CSL1901UW1 Veri Sayfası Tek Renkli LED'ler LED RED 620 nm
CSL1901VW1 CSL1901VW1 Veri Sayfası Tek Renkli LED'ler LED RED 630 nm
CSL1901YW1 CSL1901YW1 Veri Sayfası Tek Renkli LED'ler LED YELLOW 590 nm
Yayınlandı: 2022-08-16 | Güncellenmiş: 2022-11-11
