Sanyo Denki 120W 9WPA High Airflow, Splash Proof DC Fans

Sanyo Denki 120W 9WPA High Airflow, Splash Proof DC Fans are 120mm x 120mm x 25mm size fans with improved airflow and low power consumption. These high-performance fans improve cooling performance while reducing thickness. The San Ace 120W 9WPA fans feature 10MΩ minimum insulation resistance at 500VDC (between lead wire conductors and frame). These fans achieve an IP68 water and dust protection rating, maintaining stable operation in harsh environmental conditions. The San Ace 120W 9WPA fans are used in applications such as EV chargers, storage batteries, PV inverters, digital signage, and plant factories.

Features

  • High static pressure and airflow
  • Low power consumption
  • Water and dust protection with an IP68 rating
  • Eco product certified
  • RoHS directive-compliant
  • Energy saving
  • Reduced thickness

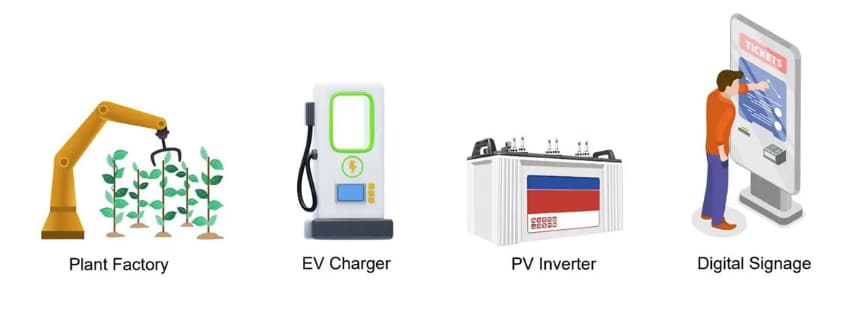

Applications

  • EV chargers
  • Storage batteries
  • PV inverters
  • Digital signage
  • Plant factories
Sanyo Denki 120W 9WPA High Airflow, Splash Proof DC Fans

Dimension Diagram

Mechanical Drawing - Sanyo Denki 120W 9WPA High Airflow, Splash Proof DC Fans

Additional Resources

Related Fans

Sanyo Denki 9WPA San Ace 60W, 80W, & 92W Splash-Proof Fans

IP68 water and dust resistance, 53.7CFM airflow, and 1.44inH2O maximum static pressure.

Learn MoreSanyo Denki 9WPA San Ace 60W, 80W, & 92W Splash-Proof Fans hakkında View ProductsSanyo Denki 9WPA San Ace 60W, 80W, & 92W Splash-Proof Fans ile ilgili
View Results ( 20 ) Page
Parça Numarası Veri Sayfası İşletim Besleme Voltajı Hava akışı Hız Güç Derecesi Akım Tipi Çerçeve Boyutları - mm Yaşam Gürültü IP Oranı
9WPA1212J4001 9WPA1212J4001 Veri Sayfası 12 VDC 148 CFM 5400 RPM 12 W DC 120 mm x 120 mm x 25 mm 70000 Hour 53 dBA IP68
9WPA1224J4001 9WPA1224J4001 Veri Sayfası 24 VDC 148 CFM 5400 RPM 12 W DC 120 mm x 120 mm x 25 mm 70000 Hour 53 dBA IP68
9WPA1212P4J001 9WPA1212P4J001 Veri Sayfası 12 VDC 148 CFM 5400 RPM 12 W DC 120 mm x 120 mm x 25 mm 70000 Hour 53 dBA IP68
9WPA1212P4G001 9WPA1212P4G001 Veri Sayfası 12 VDC 117 CFM 4250 RPM 6 W DC 120 mm x 120 mm x 25 mm 70000 Hour 46 dBA IP68
9WPA1224P4G001 9WPA1224P4G001 Veri Sayfası 24 VDC 117 CFM 4250 RPM 6 W DC 120 mm x 120 mm x 25 mm 70000 Hour 46 dBA IP68
9WPA1224P4J001 9WPA1224P4J001 Veri Sayfası 24 VDC 148 CFM 5400 RPM 12 W DC 120 mm x 120 mm x 25 mm 70000 Hour 53 dBA IP68
9WPA1212G4001 9WPA1212G4001 Veri Sayfası 12 VDC 117 CFM 4250 RPM 6 W DC 120 mm x 120 mm x 25 mm 70000 Hour 46 dBA IP68
9WPA1212G40011 9WPA1212G40011 Veri Sayfası 12 VDC 117 CFM 4250 RPM 6 W DC 120 mm x 120 mm x 25 mm 70000 Hour 46 dBA IP68
9WPA1212H4001 9WPA1212H4001 Veri Sayfası 12 VDC 65 CFM 2400 RPM 1.44 W DC 120 mm x 120 mm x 25 mm 70000 Hour 30 dBA IP68
9WPA1212H40011 9WPA1212H40011 Veri Sayfası 12 VDC 65 CFM 2400 RPM 1.44 W DC 120 mm x 120 mm x 25 mm 70000 Hour 30 dBA IP68
