STMicroelectronics STBLC01 Bluetooth Low Energy Controller

STMicroelectronics STBLC01 Bluetooth
Low Energy Controller

STMicroelectronics STBLC01 Bluetooth Low Energy Controller is a very low power Bluetooth low energy (BLE) controller compliant with Bluetooth specification 4.0. The STBLC01 integrates a low power physical layer, a link layer with an embedded security engine, a host controller interface (HCI), and a power management. The STBLC01 allows the meeting of the tight advisable peak current requirements imposed by the use of standard coin cell batteries, and even in worst-case operating conditions 13 mA is the maximum current that is drawn from the input voltage source. Yet ultra low power sleep modes and very short transition time between operating modes allow a very low average current consumption to be achieved, which results in longer battery life. The STBLC01 offers the possibility of interfacing with several external microcontrollers using either UART or SPI as the transport layer for HCI communications.
Features
  • Bluetooth specification v4.0 compliant master and slave BLE controller
  • Bluetooth protocol stack for STM32L and profiles provided separately
  • Operating supply voltage from 1.9 to 3.6V
  • 13mA maximum peak current allows standard coin cell battery usage
  • Low power physical layer
  • Link layer with embedded security engine
  • UART and SPI available as HCI transport layers
  • SPI interface allows proprietary low power mode to further reduce the power consumption
  • ISM 2.4GHz frequency band
  • 1 Mbps on-air data rate
  • Wide spread and low cost 26MHz Xtal
  • 200Ω differential impedance of antenna port
  • Very small number of external discrete components
  • Programmable output power from -18dBm to +3dBm
  • Digital RSSI
  • Power management with integrated linear regulator
  • Battery level detector function to keep control of the battery level detection
  • Compliant with the following radio frequency regulations: ETSI EN 300 328, EN 300 440, FCC CFR47 Part 15, ARIB STD-T66
  • QFN 24 5x5mm RoHS package
  • Operating temp. range from -40°C to 85°C
Applications
  • Watches
  • Fitness, wellness and sports
  • Consumer medical
  • Security/proximity
  • Remote control
  • Remote sensing
  • Home and industrial automation
  • Assisted living
  • Mobile phone peripherals
  • PC peripherals

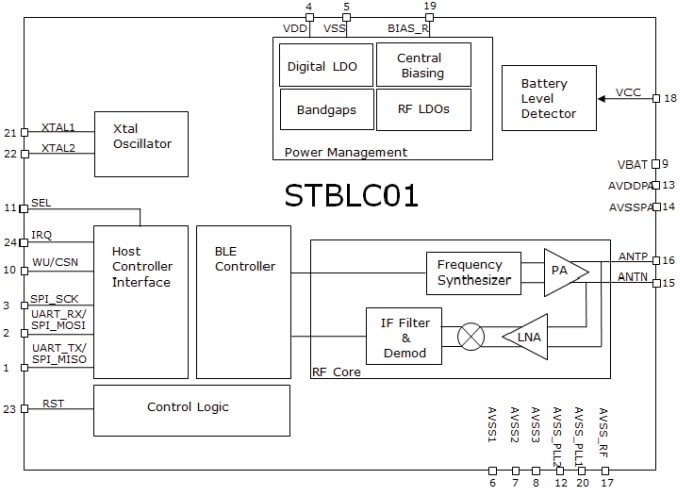

Block Diagram
Block Diagram
