STMicroelectronics STCS1A 1.5A Max Constant Current LED Drivers

STMicroelectronics STCS1A 1.5A max constant current LED drivers are designed to provide a precise constant current starting from a varying input voltage source. STMicroelectronics STCS1A LED drivers replace discrete components for driving LEDs in low voltage applications such a 5V, 12V, or 24V, providing benefits in precision, integration, and reliability. The STCS1A provides up to 40V input voltage and less than 0.5V voltage overhead. These STMicroelectronics devices are designed for LED constant current supplying for varying input voltages, low voltage lighting, small appliance LED lighting, and car LED lights.

Features

  • Up to 40 V input voltage
  • Less than 0.5 V voltage overhead
  • Up to 1.5 A output current
  • PWM dimming pin
  • Shutdown pin
  • LED disconnection diagnostic
  • Slope control with external cap

Applications

  • LED constant current supplying for varying input voltages
  • Low voltage lighting
  • Small appliances LED lighting
  • Car LED lights

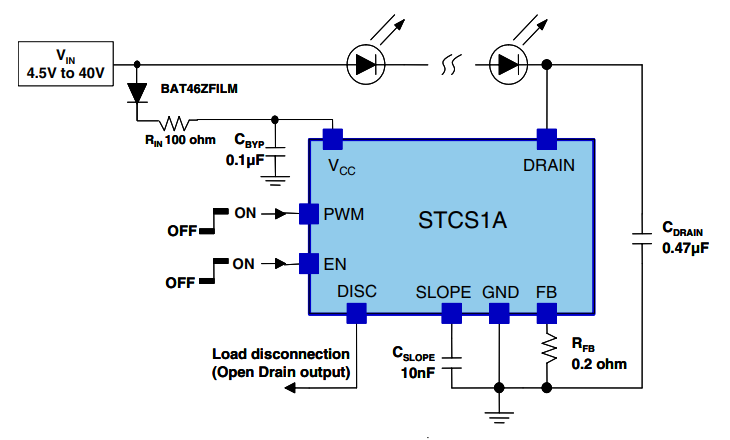

Application diagram

STMicroelectronics STCS1A 1.5A Max Constant Current LED Drivers
View Results ( 2 ) Page
Parça Numarası Veri Sayfası Açıklama Giriş Voltajı Besleme Akımı - Maks Yüksek Seviye Çıkış Akımı
STCS1APHR STCS1APHR Veri Sayfası LED Aydınlatma Sürücü IC'leri 1.5 A Max Const LED Driver 4.5 V to 40 V 3 uA 1.5 A
STCS1APUR STCS1APUR Veri Sayfası LED Aydınlatma Sürücü IC'leri 1.5 A Max Const LED Driver 4.5 V to 40 V 3 uA 1.5 A
Yayınlandı: 2011-07-06 | Güncellenmiş: 2022-03-11
