Susumu RGT AEC-Q200 Metal Thin Film Chip Resistors
Susumu RGT AEC-Q200 Compliant Metal Thin Film Chip Resistors are surface mount high precision resistors with a wide operating temperature range of -55°C to +175°C. The anti-sulfur components enable low noise and long-term stability with inorganic passivation. Features include a 50V to 200V maximum voltage range and four power rating options (1/32W, 1/16W, 1/10W, and 1/8W). With a 0.1% tolerance and a TCR down to 10ppm, the RGT AEC-Q200 compliant resistors are ideal for automotive and industrial applications.
Features
- AEC-Q200 qualified
- Wide temperature operation up to +175°C
- Long-term stability with inorganic passivation
- Thin film structure enabling low noise and anti-sulfur
- 0603, 0805, and 2012 case sizes
- Lead-free, Halogen-free, and RoHS compliant
Applications
- Automotive electronics
- Industrial measurement instrumentation, industrial machines
- Wide temperature operation machines
Specifications
- 1/32W, 1/16W, 1/10W, and 1/8W power ratings
- 50V, 100V, 150V, and 200V maximum voltages
- 1.54Ω to 2.7MΩ resistance range
- ±0.1% or ±0.5% resistance tolerance options
- -55°C to +175°C operating temperature range
- ±10ppm/°C or ±25ppm/°C temperature coefficients

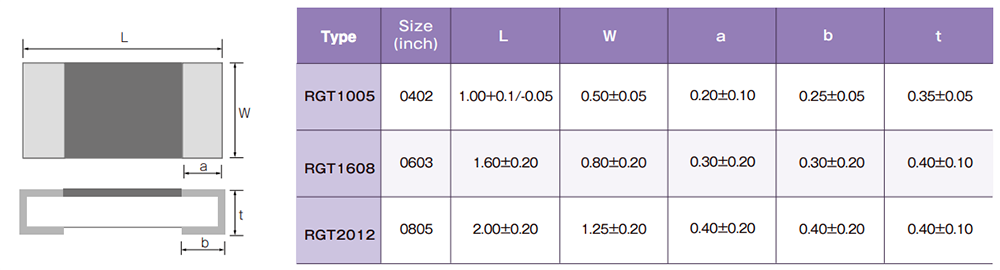

Dimensions: mm
