Taiwan Semiconductor TSU1M60H/TSU2M60H 60V Trench Schottky Rectifiers

Taiwan Semiconductor TSU1M60H/TSU2M60H 60V Trench Schottky Surface Mount Rectifiers feature low power loss and high efficiency in an AEC-Q101 qualified Micro SMA package. The Taiwan rectifiers are excellent for automated placement in various applications. The TSU1M60H/TSU2M60H implements patented trench Schottky technology for an ideal rectifier solution.

Features

  • AEC-Q101 qualified
  • Patented Trench Schottky technology
  • Low power loss, high efficiency
  • Ideal for automated placement
  • Moisture sensitivity level 1, per J-STD-020
  • RoHS Compliant
  • Halogen-free according to IEC 61249-2-21
  • Micro SMA Case
  • Molding compound meets UL 94V-0 flammability rating
  • Matte tin plated leads, solderable per J-STD-002 terminals
  • Meet JESD 201 class 2 whisker test
  • Polarity is Indicated by the cathode band

Applications

  • Switching mode power supply (SMPS)
  • Adapters
  • Lighting application
  • On-board DC/DC converter
  • Automotive

Typical Application

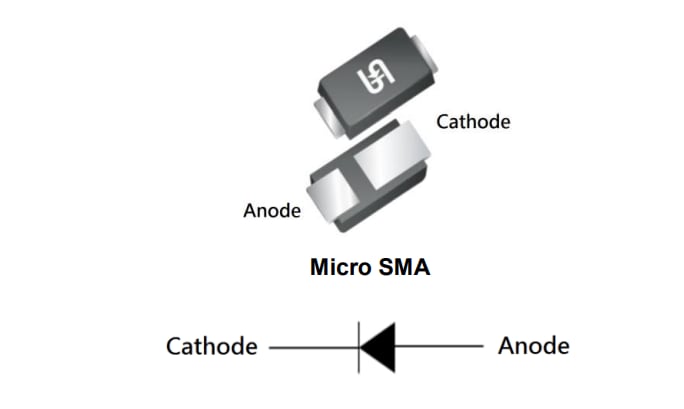

Application Circuit Diagram - Taiwan Semiconductor TSU1M60H/TSU2M60H 60V Trench Schottky Rectifiers
View Results ( 2 ) Page
Parça Numarası Veri Sayfası Açıklama
TSU2M60H TSU2M60H Veri Sayfası Schottky Diyotlar ve Doğrultucular 2A, 60V, Trench Schottky
TSU1M60H TSU1M60H Veri Sayfası Schottky Diyotlar ve Doğrultucular 1A, 60V, Trench Schottky
Yayınlandı: 2022-08-31 | Güncellenmiş: 2022-09-13
