Taoglas TU.66 Terminal-Mount Antennas

Taoglas TU.66 Terminal-Mount Antennas are wideband antennas with an N-type connector that cover the 600MHz to 8000MHz frequency range. These terminal mount antennas are compact, high-performance cellular antennas designed for 4G, 5G, and WiFi bands. The TU.66 series delivers excellent efficiency across the full bandwidth. These terminal-mount antennas are ideal for a variety of IoT and M2M applications with a high gain and an omnidirectional radiation pattern. Taoglas TU.66 antennas are suitable for gateways, routers, private LTE networks, in-building connectivity systems, Point-of-sale (POS) kiosks, digital signage, connected industries, and smart metering.

Features

  • Covers all global cellular bands from 600MHz to 8000MHz frequency range
  • Covers 2.4GHz, 5.8GHz, and 7.125GHz Wi-Fi bands
  • Robust IP67 waterproof enclosure
  • -40°C to +85°C temperature range
  • N-Type (M) connector
  • Length 125mm x Ø22.8mm
  • RoHS and REACH compliant

Applications

  • Gateways, routers, and private LTE networks
  • In-building connectivity systems
  • POS kiosks and digital signage
  • Connected industries and smart metering

Videos

Dimensions

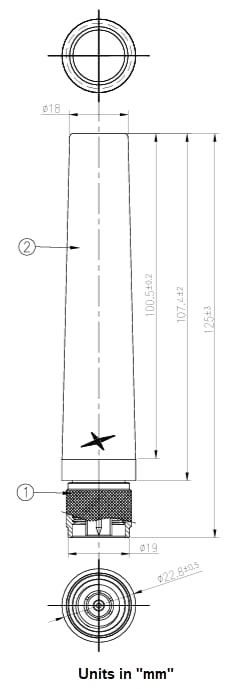

Mechanical Drawing - Taoglas TU.66 Terminal-Mount Antennas

Efficiency

Performance Graph - Taoglas TU.66 Terminal-Mount Antennas
