TE Connectivity High-Frequency RF Connectors & Cable Assemblies

TE Connectivity’s (TE) High-Frequency RF Connectors and Testing Cable Assemblies support up to 67GHz while providing reliable, high performance for demanding applications. The RF series offers extremely low insertion loss and Voltage Standing Wave Ratio (VSWR). The connectors feature a 1.85mm, 2.4mm, or OS-2.9 (2.92mm) RF interface with 40GHz, 50GHz, or 67GHz operating frequencies. These components offer brass or stainless steel body material, passivated or plated body finish, and board-mount, fixing screw, or panel-mount styles. TE High-Frequency RF Connectors and Testing Cable Assemblies are designed with SMA straight- or standard-size plugs in fluorinated ethylene propylene (FEP) or polyurethane (PUR) jacket material. Available wire sizes include 24AWG, 21AWG, and 19AWG.

TE High-Frequency RF Connectors and Testing Cable Assemblies are compatible with other RF vendors. Ideal applications include wireless, telecommunications, consumer devices, test and measurement, military communications, and more.

Features

  • Connectors
    • 40GHz, 50GHz, or 67GHz operating frequencies
    • 1.85mm, 2.4mm, or OS-2.9 (2.92mm) RF interface
    • Board mount, fixing screw, or panel mount
    • Edge, straight, or vertical PCB mount orientation
    • Brass or stainless steel body material
    • Passivated or plated body finish
  • Cable assemblies
    • SMA straight- or standard-size plug
    • 24AWG, 21AWG, or 19AWG wire sizes
    • Fluorinated ethylene propylene (FEP) or polyurethane (PUR) jacket material

Applications

  • Wireless applications
  • Base stations
  • Telecommunications
  • Consumer devices
  • Appliances
  • Antennas
  • Infotainment
  • Factory automation
  • Enterprise
  • Internet of Things (IoT)
  • Avionics
  • Test and measurement
  • Military communications
  • Autonomous vehicles

Infographic

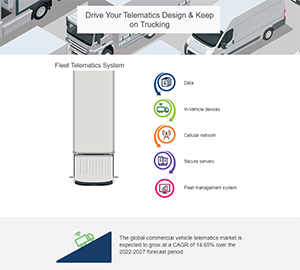

Infographic - TE Connectivity High-Frequency RF Connectors & Cable Assemblies

View Full Infographic

View Results ( 15 ) Page
Parça Numarası Veri Sayfası Açıklama Sonlandırma Stili Uyum
1-2016703-0 1-2016703-0 Veri Sayfası RF Kablo Tertibatları N M TO SMA M,18G 1.0M WITH ARMOR IEC60169-15, IEC61169-16
2081934-1 2081934-1 Veri Sayfası RF Konnektör / Koaksiyel Konnektörler 2.92MM JACK PCB EDGE LAUNCH Solder
1-2016656-0 1-2016656-0 Veri Sayfası RF Kablo Tertibatları SMA M DOUBLE,18G 1.0M WITH ARMOR,PUR IEC60169-15
2081937-1 2081937-1 Veri Sayfası RF Konnektör / Koaksiyel Konnektörler 1.85MM JACK 2-HOLE FLANGE SOLDERLESS Solder
2081570-2 2081570-2 Veri Sayfası RF Konnektör / Koaksiyel Konnektörler 2.92MM JACK 2 HOLE FLANGE RECEPTACLE Solder
1-2016657-0 1-2016657-0 Veri Sayfası RF Kablo Tertibatları N M DOUBLE,18G,1.0M WITHOUT ARMOR IEC61169-16
1-2016658-0 1-2016658-0 Veri Sayfası RF Kablo Tertibatları N M DOUBLE,18G,1.0M WITH ARMOR,PUR IEC60169-16
2081570-1 2081570-1 Veri Sayfası RF Konnektör / Koaksiyel Konnektörler 2.92MM JACK 2 HOLE FLANGE RECEPTACLE Solder
2081935-1 2081935-1 Veri Sayfası RF Konnektör / Koaksiyel Konnektörler 2.4MM JACK 4-HOLE FLANGE RECEPTACLE Solder
2081936-1 2081936-1 Veri Sayfası RF Konnektör / Koaksiyel Konnektörler 2.4MM JACK 2-HOLE FLANGE SOLDERLESS Solder
