Texas Instruments HSEC180ADAPEVM Adapter Board for SOM
Texas Instruments HSEC180ADAPEVM Adapter Board is a 180-pin High-Speed Edge Card (HSEC) adapter for TI C2000 System-On-Module (SOM) platforms, providing backward compatibility with C2000 HSEC-based EVMs.
The HSEC180ADAPEVM connects 180-pins from the SOM board to HSEC pins for use with legacy C2000 HSEC Docking Stations, such as the TMDSHSECDOCK. The TI HSEC180ADAPEVM also features two DP83826 10Mbps/100Mbps Industrial Ethernet PHYs for evaluating EtherCAT® functionality on C2000 Microcontroller SOM platforms.
Features
- Standard 180-pin HSEC interface
- Compatibility with XDS110ISO-EVM for emulation
- 2x DP83826 10Mbps/100Mbps Industrial Ethernet PHY with 2x RJ-45 Ethernet jacks
- Fast Serial Interface (FSI) header
- ADC filtering and ESD protection for dedicated Analog HSEC pins
Kit Contents
- HSEC180ADAPEVM PCB
- Quick Start Guide
- Not included: HSEC Dock and F29H85X-SOM-EVM

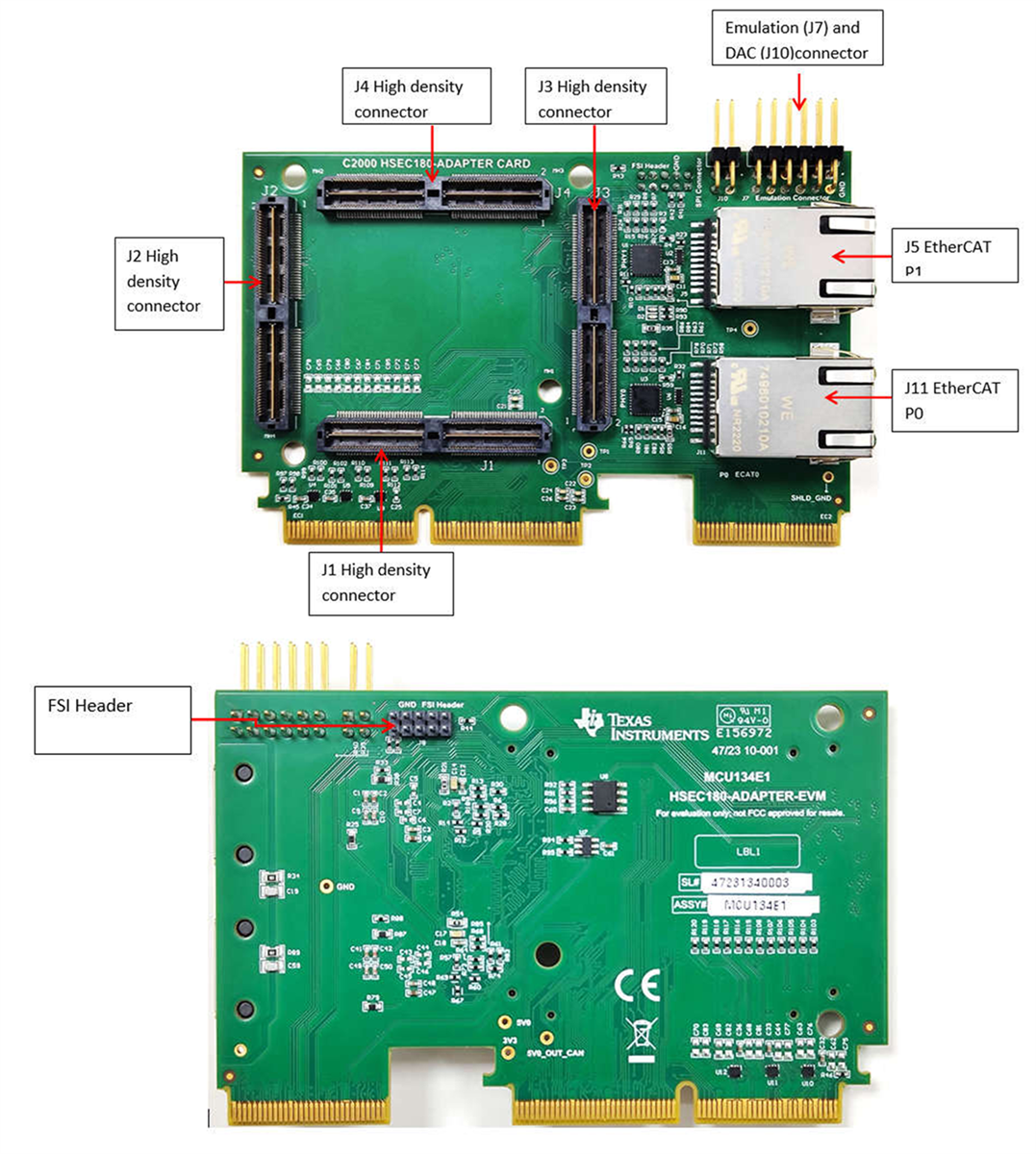

System Description

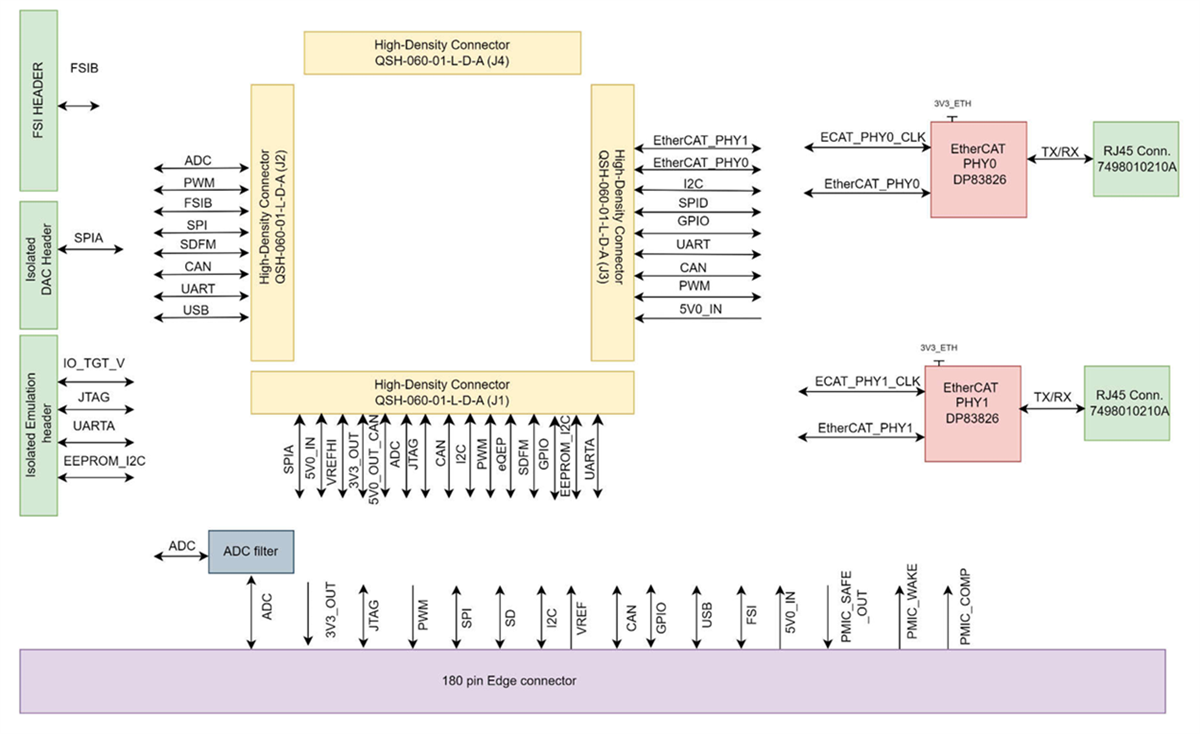

Functional Block Diagram

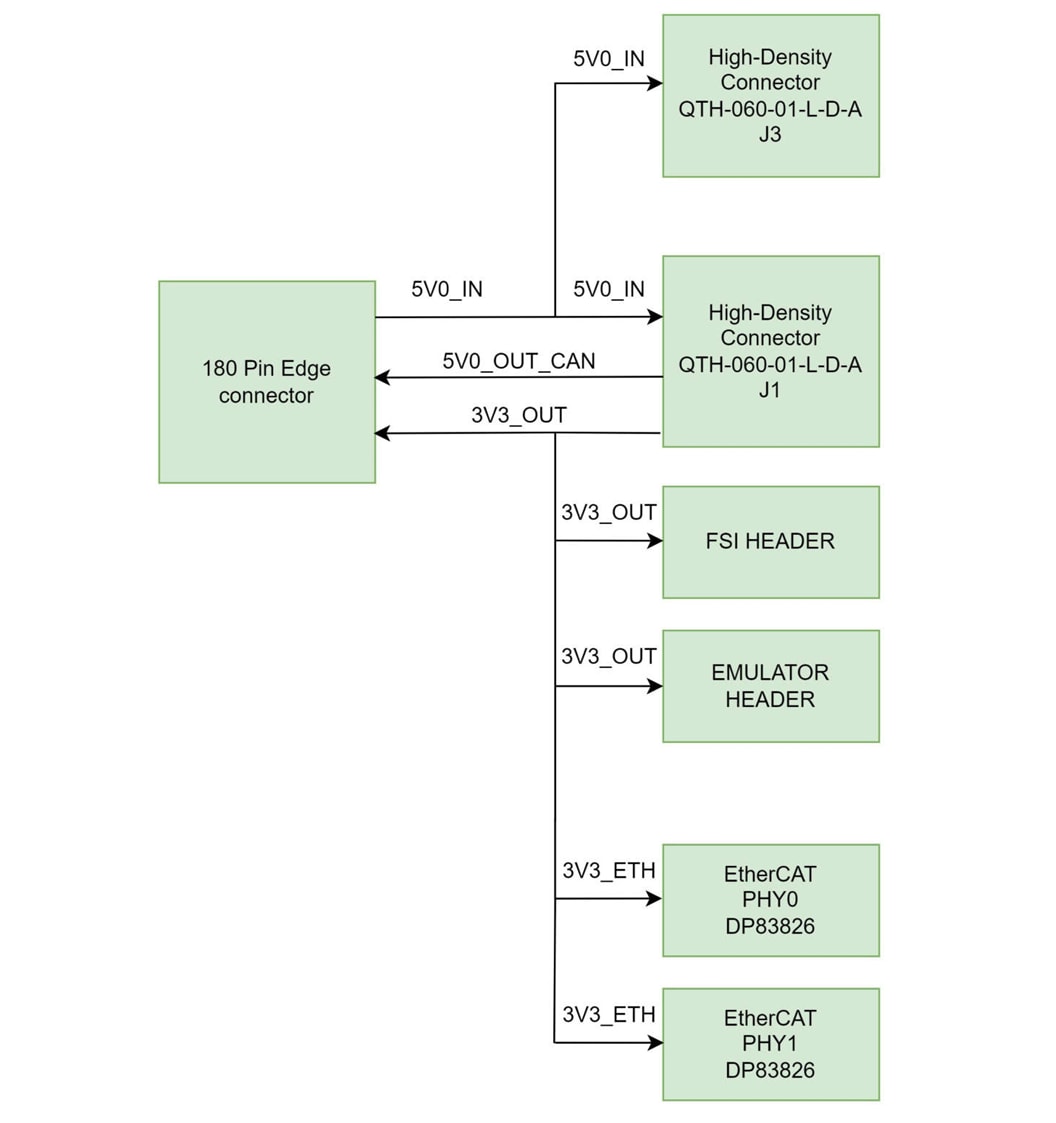

Power Tree
