Texas Instruments ISO7810 Single-Channel Digital Isolators

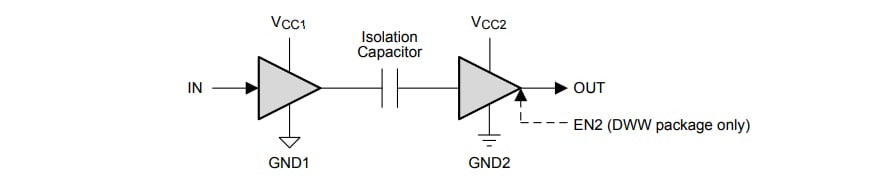

Texas Instruments ISO7810 Single-Channel Digital Isolators are single-channel digital isolators with 8000V_PK isolation voltage. These devices have reinforced isolation certifications according to VDE, CSA, and CQC. Each isolator provides high electro-magnetic immunity. They also have low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/O's. Each isolation channel has a logic input and output buffer separated by silicon dioxide (SiO₂) insulation barrier. If the input power or signal is lost, default output is 'high' for the ISO7810 and 'low' for the ISO7810F device. Used in conjunction with isolated power supplies, this device prevents noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry.

Features

Signaling rate up to 100Mbps
2.25V to 5.5V Wide supply range
2.25V to 5.5V Level translation
-55°C to 125°C Wide temperature range
Low power consumption, typical 1.8mA per channel at 1Mbps
11ns Typical (5V supplies) low propagation delay
Industry-leading CMTI at ±100kV/µs
Robust Electromagnetic Compatibility (EMC)
Isolation barrier life of >25 years
System-level ESD, EFT, and surge immunity

Low emissions
Widebody (DW) SOIC-16 package
Safety and regulatory approvals
- 8000VPK V_IOTM and 2121VPK V_IORM reinforced isolation per DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
- 5.7kVRMS Isolation for 1 minute per UL 1577
- CSA Component acceptance notice 5A, IEC 60950-1, IEC 60601-1, and IEC 61010-1 end equipment standards
- CQC Certification per GB4943.1-2011
