Texas Instruments TLIN1431EVM Evaluation Module
Texas Instruments TLIN1431EVM Evaluation Module is used to evaluate the TLIN1431x-Q1 devices, including the TLIN14315RGY and the TLIN14313RGY. All IC signals are on the board, and features of the TLIN1431x-Q1 are accessible via the TLIN1431EVM board.
The TI TLIN1431x-Q1 single-channel LIN SBCs, include LDO, wake, high-side switch, watchdog, integrated battery voltage divider, LIMP, and channel expansion functionality.
The TLIN1431EVM evaluation module permits both commander and responder mode applications to be demonstrated by using a single jumper that connects or disconnects the external 1kΩ pull-up resistor and series diode required in commander mode applications on the LIN bus.
Features
- Provides access to LIN bus, TXD, and RXD pins
- WAKE switch for generating WAKE signal
- Adjacent jumper connections allow for SPI communication
- Test point-style and header-style connections for signals
- Compatible with both LDO versions of the TLIN1431x-Q1
Associated Products
Texas Instruments TLIN1431x-Q1 Automotive LIN SBCs
LIN SBC incorporates a watchdog, high-side switch, limp home capability, and WAKE input pin.

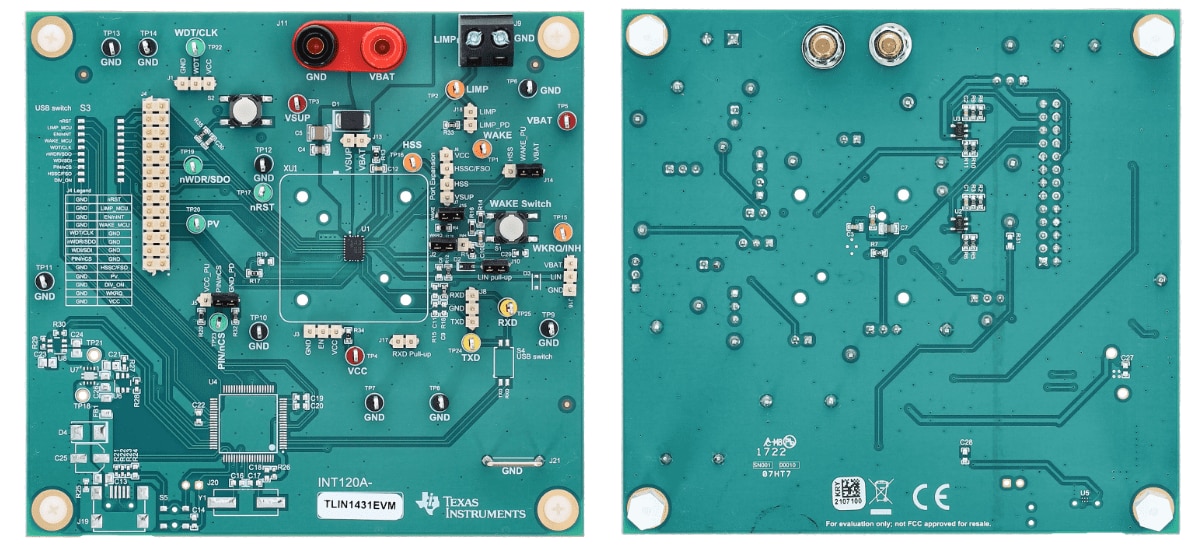

PCB Layout
