Texas Instruments TMDSCNCD280039C ControlCARD Evaluation Module
Texas Instruments TMDSCNCD280039C ControlCARD Evaluation Module (EVM) is a low-cost evaluation and development board for the TI C2000™ MCU series of F28003x devices. It comes with an HSEC180 (180-pin high-speed edge connector) and, as a controlCARD, is ideal for initial evaluation and prototyping. For assessment of the Texas Instruments TMDSCNCD280039C, a 180-pin docking station TMDSHSECDOCK is required and can be purchased separately.
Features
- Hardware Features
- Isolated on-board XDS110 USB-to-JTAG debug probe enables real-time in-system programming and debugging
- Standard 180-pin controlCARD HSEC interface
- Analog I/O, digital I/O, and JTAG signals at card interface
- Hardware files are in C2000Ware at boards\controlCARDs\TMDSCNCD280039C
- Software Features
- Free download of Code Composer Studio IDE
- Free download of C2000Ware for device drivers and example projects
- DigitalPower SDK and powerSUITE
- MotorControl SDK
Kit Contents
- TMDSCNCD280039C evaluation board
- USB Type-A male to USB Type-C® male cable
Software
- C2000WARE — C2000Ware for C2000 MCUs
- C2000WARE-DIGITALPOWER-SDK — DigitalPower software development kit (SDK) for C2000™ MCUs
- C2000WARE-MOTORCONTROL-SDK — MotorControl software development kit (SDK) for C2000™ MCUs
- CCSTUDIO-C2000 — Code Composer Studio (CCS) Integrated Development Environment (IDE) for C2000 Microcontrollers
- POWERSUITE — powerSUITE - Digital Power Supply Design Software Tools for C2000™ MCUs
Videos

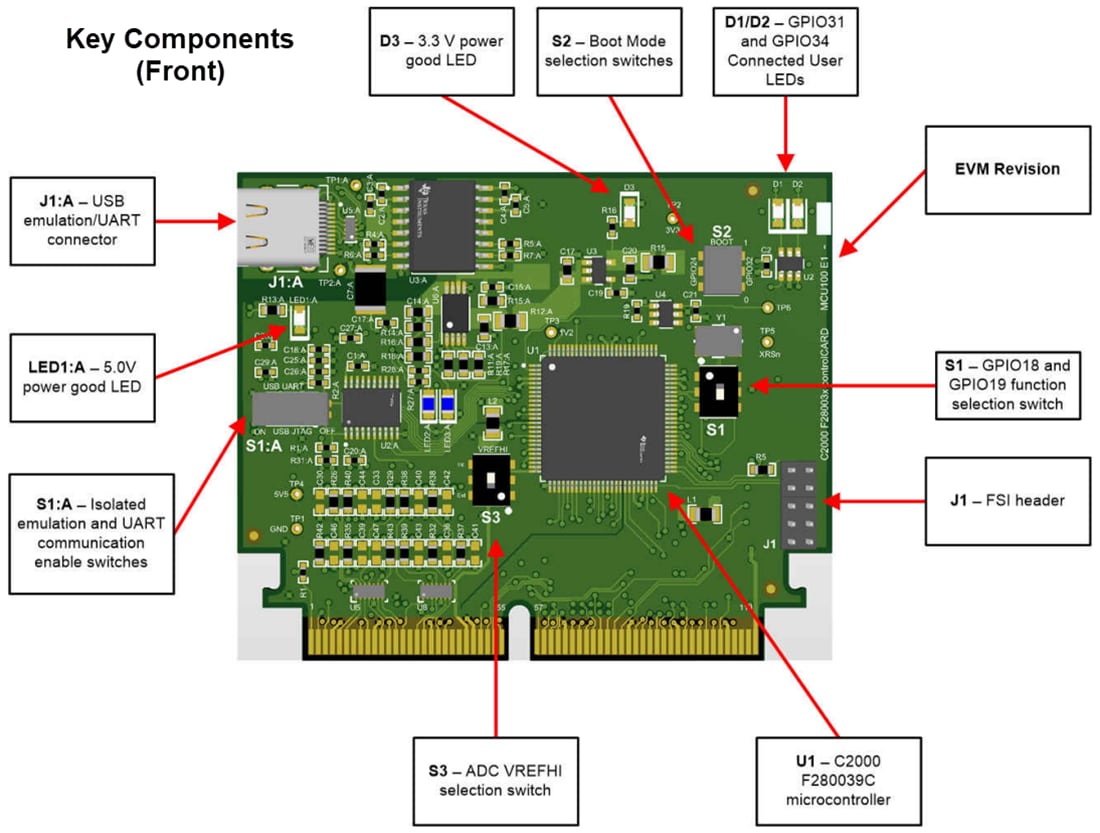

Key Components - Front

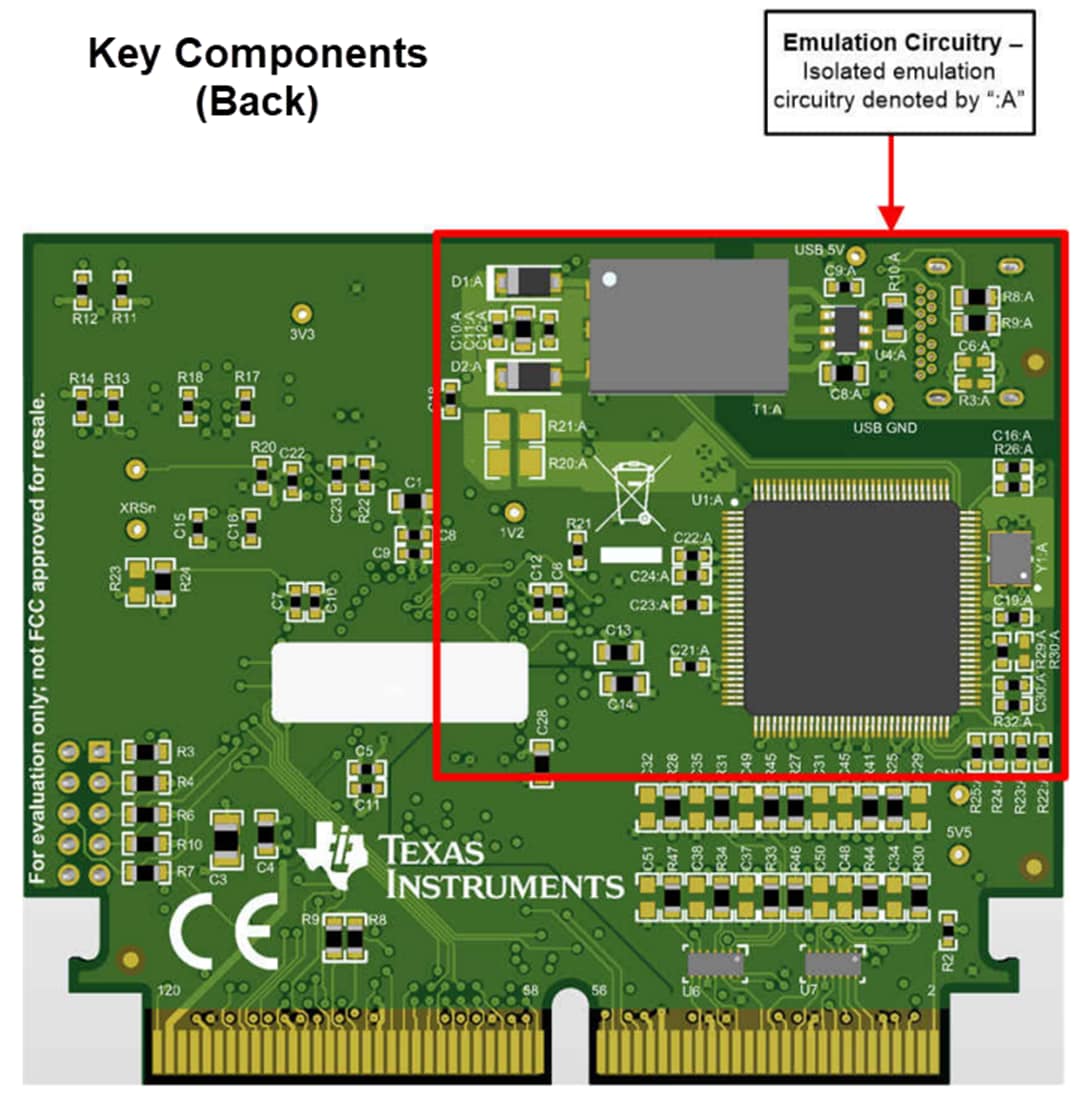

Key Components - Back
Associated Products
Texas Instruments TMS320F28003x/TMS320F28003x-Q1 Real-Time MCUs
Part of the C2000™ real-time microcontrollers of scalable, ultra-low latency devices.
Development Tools
Texas Instruments BOOSTXL-LMG2100-MD Power Stage Evaluation Module
This module implements a GaN inverter to control precision drives such as servo drives accurately.
Texas Instruments TMDSHSECDOCK Baseboard Docking Station
Provides header pin access to key signals on compatible HSEC180-based controlCARDs.
Wolfspeed SpeedVal™ Kit Modular Evaluation Platforms
Range of power topologies, package types, and voltages that support almost any application.
