Texas Instruments TPS552892EVM-111 Evaluation Module
Texas Instruments TPS552892EVM-111 Evaluation Module is configured to evaluate the operation of the TPS552892. The TPS552892 is a synchronous buck-boost converter optimized for converting battery or adaptor voltage into power supply rails. The TI TPS552892EVM-111 incorporates four MOSFET switches delivering a compact solution for USB Power Delivery (USB PD) application.
Features
- Input voltage range of 3.0V to 36V
- Output voltage range of up to 22V
- 8A average inductor current limit
- An adjustable switching frequency of 200kHz to 2.4MHz

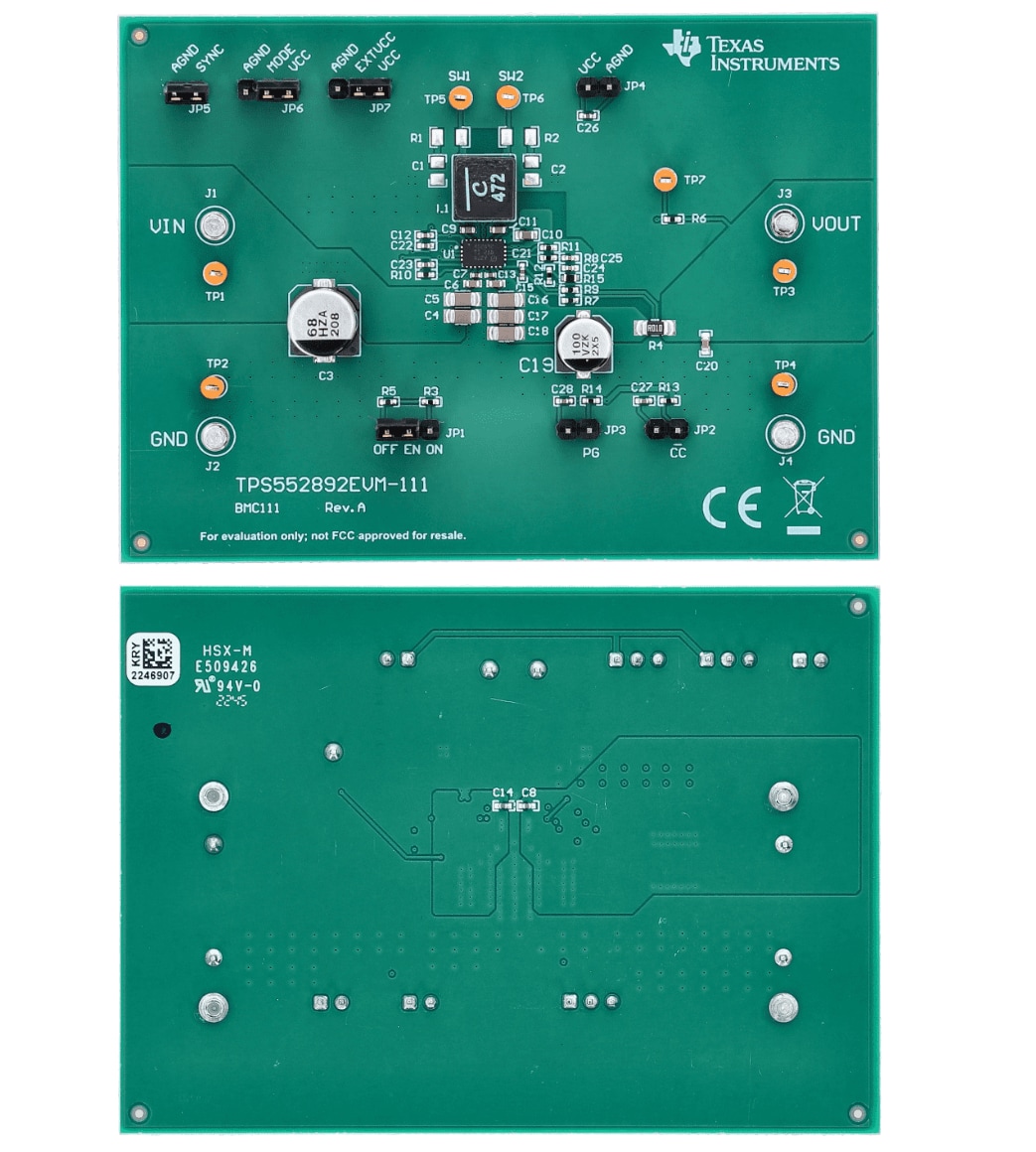

PCB Layout
Related Product
Texas Instruments TPS552892/TPS552892-Q1 Buck-Boost Converter
The device is optimized for converting battery or adapter voltage into power supply rails.
