Texas Instruments TPS7H1121EVM-CVAL Evaluation Module
Texas Instruments TPS7H1121EVM-CVAL Evaluation Module demonstrates the operation of a single TPS7H1121-SP LDO regulator. The board equips footprints that can be populated with additional components. The TI TPS7H1121EVM-CVAL Evaluation Module enables the device to test customized configurations, test points, and SMA connectors for easy performance validation.
Features
- Input voltage ranges from 2.25V to 14V
- 2A maximum output current
- ±1.5% accuracy over line, load, and temperature
- Externally regulated 5V PGOOD supply
- Optional external control loop compensation utilizing the STAB pin

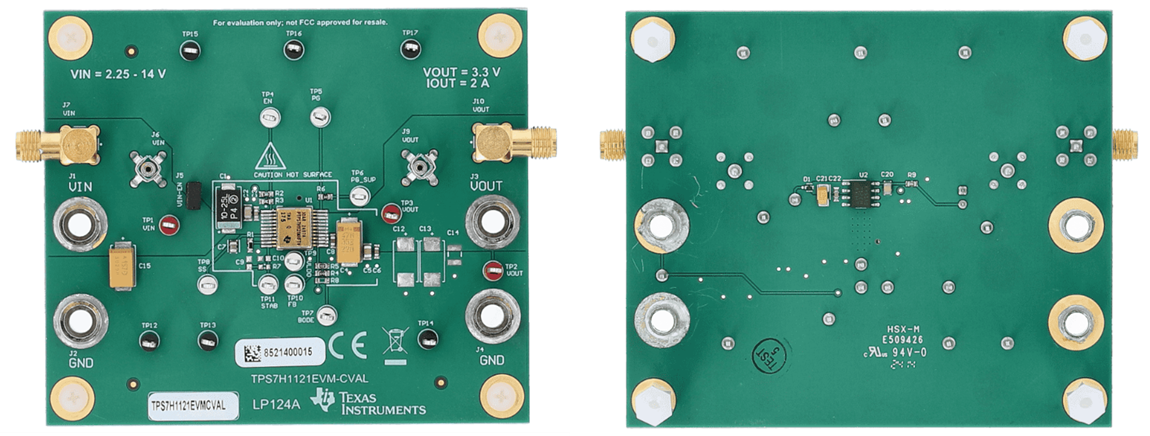

PCB Layout
Functional Block Diagram
Simplified Schematic

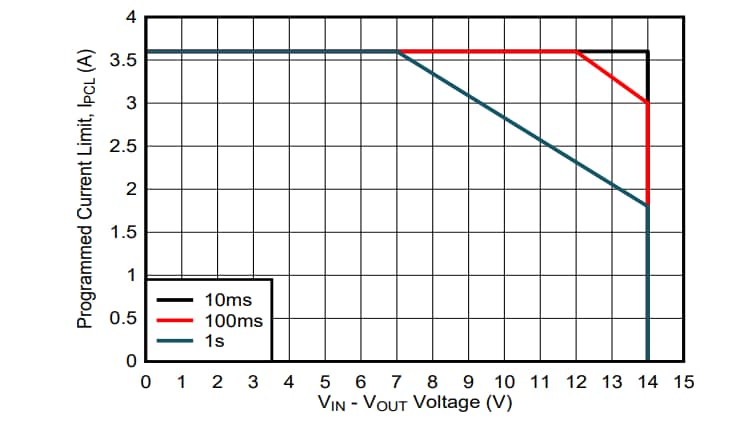

Programmable Current Limit Protection Area
Eval Module
Texas Instruments TPS7H1121EVM Evaluation Module
Designed to easily demonstrate the TPS7H1121-SEP LDO regulator in a plastic package.
Yayınlandı: 2024-07-09
| Güncellenmiş: 2025-09-12
