Infineon Technologies PSOC™4XX8_BLE Embedded System Controllers

Infineon Technologies PSOC™4XX8_BLE Embedded System Controllers have a scalable and reconfigurable platform for embedded system controllers. The controller has an Arm^® Cortex™-M0 CPU that combines programmable and reconfigurable analog and digital blocks with flexible automatic routing. PSOC4XX8_BLE combines a microcontroller with an integrated BLUETOOTH^® Low Energy (BLE) and is also known as BLUETOOTH Smart, radio, and subsystem (BLESS). Some features include digital programmable logic, high-performance, analog-to-digital conversion (ADC), and op-amps. Infineon Technologies PSoC4XX8_BLE products are compatible with members of the PSoC4 platform for application and design needs.

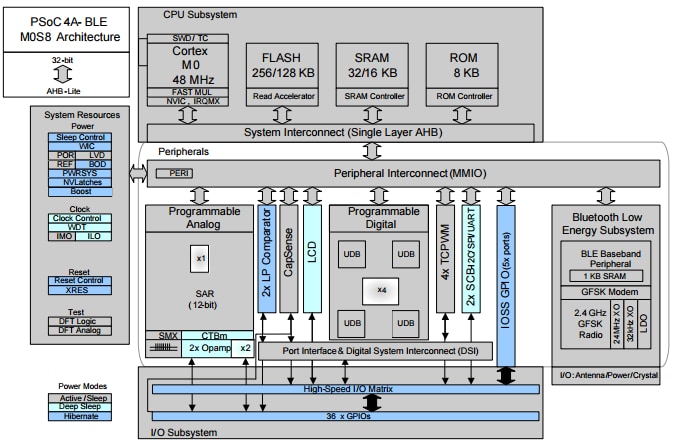

Features

32-bit MCU subsystem
- 48MHz Arm Cortex-M0 CPU with single-cycle multiply
- Up to 256KB of flash with read accelerator
- Up to 32KB of SRAM
BLE radio and subsystem
- 2.4GHz RF transceiver with 50Ω antenna drive
- Digital PHY
- Link-layer engine supporting master and slave modes
- RF output power: -18dBm to +3dBm
- RX sensitivity: -92dBm
- RX current: 18.7mA
- TX current: 16.5mA at 0dBm
- RSSI: 1dB resolution
Programmable analog
- Four op amps with reconfigurable high-drive external and high-bandwidth internal drive, comparator modes, and ADC input buffering capability. Can operate in Deep Sleep mode
- 12bit, 1Msps SAR ADC with differential and single-ended modes; channel sequencer with signal averaging
- Two current DACs (IDACs) for general-purpose or capacitive sensing applications on any pin
- Two low-power comparators that operate in Deep Sleep mode
Programmable digital
- Four programmable logic blocks called universal digital blocks (UDBs), each with eight macrocells and data path
- Cypress-provided peripheral component library, user-defined state machines, and Verilog input
Power management
- Active mode: 1.7mA at 3MHz flash program execution
- Deep Sleep mode: 1.3µA with watch crystal oscillator (WCO)on
- Hibernate mode: 150nA with RAM retention
- Stop mode: 60nA

Capacitive sensing
- Cypress Capacitive Sigma-Delta (CSD) provides best-in-class SNR (>5:1) and liquid tolerance
- Cypress-supplied software component makes capacitive sensing design easy
- Automatic hardware tuning algorithm (SmartSense™)
Segment LCD drive
- LCD drive supported on all pins (common or segment)
- Operates in Deep Sleep mode with four bits per pin memory
Serial communication
- Two independent run-time reconfigurable serial communication blocks (SCBs) with reconfigurable I²C, SPI, or UART functionality
Timing and pulse-width modulation
- Four 16-bit timer/counter pulse-width modulator (TCPWM) blocks
- Center-aligned, edge, and pseudo-random modes
- Comparator-based triggering of kill signals for motor drive and other high-reliability digital logic applications
Up to 36 programmable GPIOs
- 7mm × 7mm 56-pin QFN package
- 76-ball CSP and thin CSP packages
- Any GPIO pin can be CapSense, LCD, analog, or digital
- Two overvoltage-tolerant (OVT) pins; drive modes, strengths, and slew rates are programmable
PSOC Creator™ Design Environment
- Integrated Design Environment (IDE) provides schematic design entry and build (with analog and digital automatic routing)
- API components for all fixed-function and programmable peripherals
